Product Overview

Features

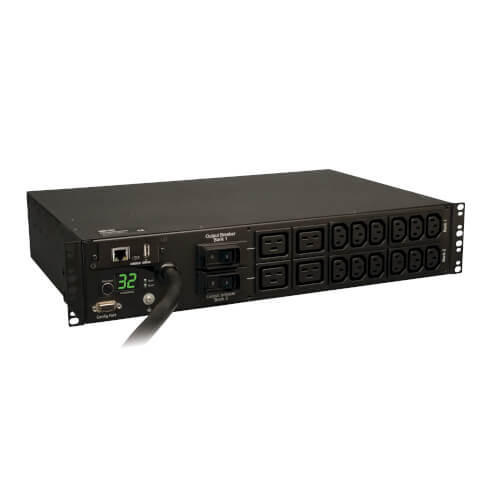

32A 7.4kW single phase 230V Monitored Power Distribution Unit / PDU
Attached Blue IEC-309 32A (2P+E) input plug with 3.65m line cord
2U horizontal rackmount format
16 outlets (12 C13, 4 C19)
Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
DHCP/Manual configuration support
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Package Includes

Monitored PDU with built-in LX platform interface
Rack installation brackets
Plug-lock cable retention sleeves
Configuration cable
User manual

Specifications

OVERVIEW

UPC Code	037332159229
PDU Type	Monitored

INPUT

PDU Input Voltage	230V
Recommended Electrical Service	Single-phase 32A 230V service
Maximum Input Amps	32
PDU Plug Type	IEC-309 32A BLUE (2P+E)
Input Phase	Single-Phase
Input Cord Length (ft.)	12

OUTPUT

Output Capacity Details	7.4kW (230V) / 32A total capacity / 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(12) C13; (4) C19
Output Nominal Voltage	230V
Overload Protection	Two 20A circuit breakers protect 8 outlets each

USER INTERFACE, ALERTS & CONTROLS

Front Panel LCD Display	Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-8; Bank 2 LED indicates the meter is reporting load level for outlets 9-16; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Front Panel LEDs	Two LEDs with toggle button identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1 & 2 combined)
Switches	Pressing the display toggle switch advances the local display of power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2 combined

PHYSICAL

Material of Construction	Metal
Form Factors Supported	2U rackmount
Minimum Required Rack Depth (inches)	16
PDU Form Factor	Horizontal (2U)
Shipping Dimensions (hwd / in.)	7.90 x 16.90 x 20.20
Shipping Weight (lbs.)	15.60
Unit Dimensions (hwd / in.)	3.5 x 17.5 x 12.5
Unit Weight (lbs.)	13.7

ENVIRONMENTAL

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +50°C (-22°F to +122°F)
Relative Humidity	Up to 95% non-condensing

COMMUNICATIONS

SNMP Compatibility

Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

FEATURES & SPECIFICATIONS

High Availability PDU Features

Auto Probe Monitoring (included)

STANDARDS & COMPLIANCE

Certifications

Tested to CE (IEC 60950-1), EN Class A (Emissions), RoHS compliant, TAA Compliant

WARRANTY

Product Warranty Period (Worldwide)

2-year limited warranty
