Product Overview
Features

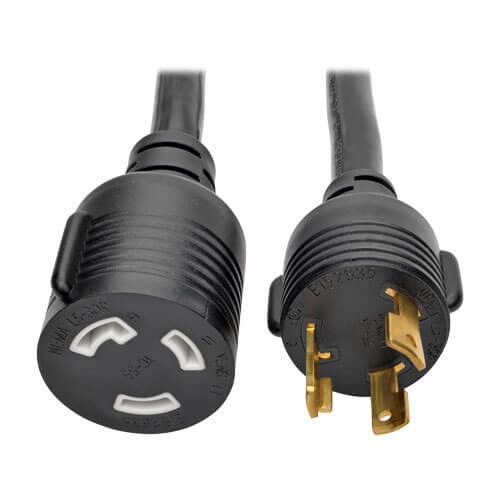

Heavy-Duty Extension Cable for Network Devices That Require a Heavy-Gauge Connection
This cord features 10 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a computer, server or other device with a NEMA L5-30P plug to a wall outlet, PDU or UPS system with a NEMA L5-30R outlet. The six-foot length allows you flexibility in placing equipment with respect to the power outlet.
Locking Connectors Help Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. Locking connectors on each end help you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.
Package Includes
- P046-006-LL-30A L5-30P to L5-30R Heavy-Duty Extension Cord, 10 ft., Black, Locking Connectors
Specifications
OVERVIEW
| UPC Code | 037332200945 |
| Device Compatibility | UPS; PDU |
| Country/Region | North America |
INPUT
| Maximum Input Amps | 30 |
| Voltage Compatibility (VAC) | 125 |
PHYSICAL
| Plug Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 14.6mm |
| Number of Conductors | 3 |
| Wire Gauge (AWG) | 10 |
| Cable Length (ft.) | 10 |
| Shipping Dimensions (hwd / in.) | 14.76 x 10.24 x 0.50 |
| Shipping Weight (lbs.) | 2.67 |
ENVIRONMENTAL
| Operating Temperature Range | 14 F TO 140 F (-10 C TO 60 C) |
| Storage Temperature Range | 14 F TO 140 F (-10 C TO 60 C) |
| Operating Humidity Range | 35% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 85% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | NEMA L5-30P |
| Side B - Connector 1 | NEMA L5-30R |
FEATURES & SPECIFICATIONS
| Locking Plug | Yes |
| Angled Plug | No |
STANDARDS & COMPLIANCE
| Certifications | UL/cUL |
| Approvals | UL/CSA |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
