Product Overview
Overview

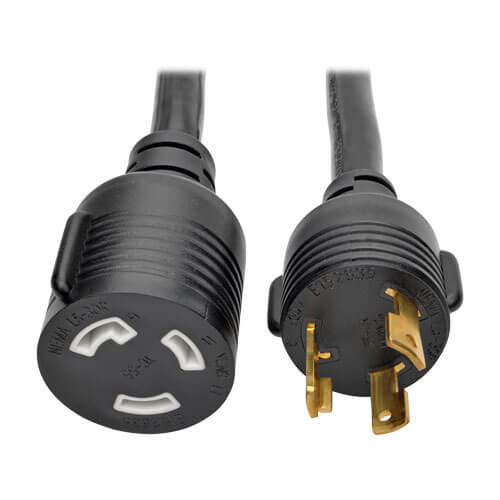

The P046-006-LL-30A Heavy-Duty Power Extension Cord features a NEMA L5-30P plug on one end and a NEMA L5-30R receptacle on the other, allowing you to extend the length of your existing power cord. Both molded connectors twist and lock into place, which prevents disconnection via jostling or other accidental impact. The 6-ft. (1.83 m) 10 AWG cord is rated for 125V and 30A. Its durable PVC jacket is designed to last a long time.
Features
- NEMA L5-30R receptacle at opposite end
- Molded locking connectors prevent accidental disconnection
- Integral strain relief
- 125V/30A rating
- Durable PVC jacket
- 6-ft. (1.83 m) long
Package Includes
- P046-006-LL-30A Heavy-Duty Power Extension Cord, 6-ft. (1.83 m)
Specifications
OVERVIEW
| UPC Code | 037332200938 |
| Device Compatibility | UPS; PDU |
| Country/Region | North America |
INPUT
| Maximum Input Amps | 30 |
| Voltage Compatibility (VAC) | 125 |
PHYSICAL
| Plug Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 14.6mm |
| Number of Conductors | 3 |
| Wire Gauge (AWG) | 10 |
| Cable Length (ft.) | 6 |
| Shipping Dimensions (hwd / in.) | 12.80 x 8.86 x 0.50 |
| Shipping Weight (lbs.) | 1.79 |
ENVIRONMENTAL
| Operating Temperature Range | 14 F TO 140 F (-10 C TO 60 C) |
| Storage Temperature Range | 14 F TO 140 F (-10 C TO 60 C) |
| Operating Humidity Range | 35% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 85% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | NEMA L5-30P |
| Side B - Connector 1 | NEMA L5-30R |
FEATURES & SPECIFICATIONS
| Locking Plug | Yes |
| Angled Plug | No |
STANDARDS & COMPLIANCE
| Certifications | UL/cUL |
| Approvals | UL/CSA |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
