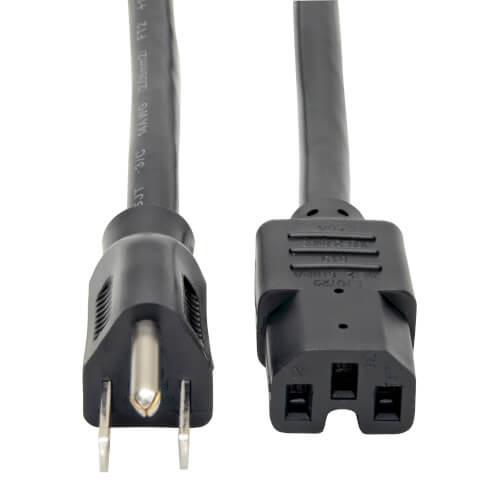

Tripp-Lite P019-008 8Ft Heavy Duty Power Cord

$24.99
SKU:
P019-008
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

IEC C15 Power Cord for Network Devices That Require a Heavy-Gauge Connection
This IEC C15 power cable features 14 AWG wire suitable for high power connections, making it reliable for large server applications that require a higher-rated, heavier-gauge cable. The C15 connector is designed for higher-temperature devices, such as electric kettles, PoE (Power over Ethernet) switches with high-wattage power supplies, and similar network components. This cord can also replace or upgrade the standard power cord provided by the device's manufacturer. The 8-ft. (2.43 m) length allows you flexibility in placing equipment with respect to the power outlet.

Package Includes

  • P019-008 C15 Power Cord, 5-15P to C15, 8-ft. (2.43 m), Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332174536
Device Compatibility Computer; Server; Network Switch; UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 15
Voltage Compatibility (VAC) 100-250
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 9.3mm
Number of Conductors 3
Wire Gauge (AWG) 14
Cable Length (ft.) 8
Shipping Dimensions (hwd / in.) 10.00 x 7.10 x 0.50
Shipping Weight (lbs.) 0.80
ENVIRONMENTAL
Operating Temperature Range -4 F TO 140 F (-20 C TO 60 C)
Storage Temperature Range -4 F TO 140 F (-20 C TO 60 C)
Operating Humidity Range 10 TO 65% RH
Storage Humidity Range 10 TO 65% RH
CONNECTIONS
Side A - Connector 1 NEMA 5-15P
Side B - Connector 1 IEC-320-C15
FEATURES & SPECIFICATIONS
High Voltage Yes
Locking Plug No
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
