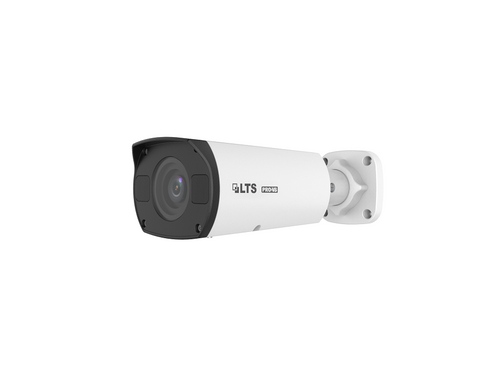

Product Overview
- Resolution: 4MP, 2592 × 1520@30fps
- Varifocal Lens: 2.8 - 12mm, Auto Focus Motorized Zoom Lens
- Lux: 0.003 lux @F1.6
- Compression: Ultra 265/H.265/H.264
- IR: Smart IR LED up to 98ft
- Features: 120dB WDR, 2D/3D DNR, BLC, HLC, Digital Defog
- Audio: Audio In/Out
- Alarm: Alarm In/Out
- Storage: MicroSD up to 256GB, Automatic Network Replenishment
- Axis: 3 Axis
- Rating: IP67, IK10 Vandal Proof, 6KV Surge Protection
- Power: DC 12V, PoE
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||||
| 12 | 270.0 | 108.0 | 54.0 | 27.0 | ||||
| Angle of view (H) | 98.26°~ 31.35° | |||||||
| Angle of View (V) | 54.76°~ 18.55° | |||||||
| Angle of View (O) | 127.74°~36.99° | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 70° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||
| Frame Rate | Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||
| Dewarping | NA | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Audio | ||||||||
| Audio Compression | G.711 | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||
| Network Storage | ANR | |||||||
| Smart | ||||||||
| Behavior Detection | Human Body Detection | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Client | LTS Pro-VS station | |||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Interface | ||||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
| Alarm I/O | 1/1 | |||||||
| Network | 10M/100M Base-TX Ethernet | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 8.7W | ||||||||
| Dimensions (Ø x H) | Φ128.1mmx99.9mm (Ø5.04” x 3.93”) | |||||||
| Net Weight | 0.57kg (1.26lb) | |||||||
| Material | ShieldPC Bodymetal Bottom platemetal | |||||||
| Working Environment | -35°C 60°C (-31°F 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -35°C 60°C (-31°F 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 6KV | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||
| Reset Button | Supported | |||||||
