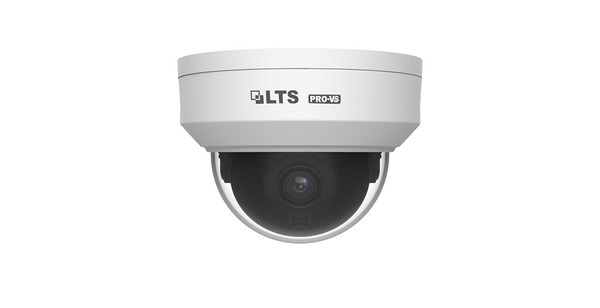

Product Overview
- Resolution: 4MP, 2592 × 1520@30fps
- Fixed Lens: 2.8mm
- Lux: 0.01 lux @F2.0
- Compression: Ultra 265/H.265/H.264/MJPEG
- IR: Smart IR LED up to 98ft
- Features: 120dB WDR, 2D/3D DNR, BLC, HLC, Digital Defog
- Audio: Audio In/Out
- Alarm: Alarm In/Out
- Storage: MicroSD up to 256GB, Automatic Network Replenishment
- Axis:3 Axis
- Rating: IP67, IK10 Vandal Proof, 2KV Surge Protection
- Power: DC 12V, PoE
| Camera | |||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8mm@F2.0 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |
| Angle of View (H) | 95.8° | ||||
| Angle of View (V) | 55.2° | ||||
| Angle of View (O) | 124.5° | ||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Color: 0.01Lux (F2.0, AGC ON) 0Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >56dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
| Frame Rate | Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | NA | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Smart | |||||
| Behavior Detection | Human Body Detection | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | LTS PRO-VS Station | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Interface | |||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 5.5W | |||||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | ||||
| Net Weight | 0.45kg (0.99lb) | ||||
| Material | ShieldPC Bodyplastic Bottom platemetal | ||||
| Working Environment | -35°C 60°C (-31°F 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -35°C 60°C (-31°F 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
