Product Overview

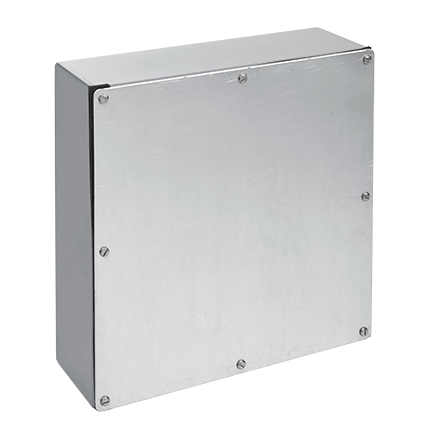

Screw-Cover, Gasketed, Type 3, 10.00x10.00x6.00, Steel
- Captivated stainless steel cover screws thread into sealed wells
- Oil-resistant gasket and adhesive
- Seams continuously welded and ground smooth
- No holes or knockouts
- Grounding stud on inside back of box
PRODUCT ATTRIBUTES
- Height: 10 in / 254 mm
- Width: 10 in / 254 mm
- Depth: 6 in / 152 mm
- Protection Rating: NEMA Type 3; IP66
- Material: Mild Steel
- Finish: Galvanized
- Color: Unpainted
- Body Thickness: 14 ga / 1.9 mm
- Door Thickness: 12 ga / 2.66 mm
- Cover Screw Quantity: 8
- Weight: 10.18 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Use this enclosure as a wiring, junction, pull or terminal box in applications subject to windblown dust and/or rain.
BULLETIN NUMBER
A90GS
INDUSTRY STANDARDS
UL 508A Listed; Type 3, 12; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 3, 12; File No. E61997
NEMA/EEMAC Type 3 and 12 (except for mounting provisions)
CSA, File 42184: Type 4 and 12
IEC 60529, IP66
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
