Product Overview

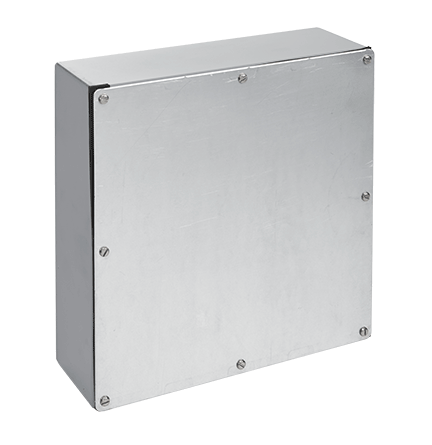

Screw-Cover Gasketed Type 3, 8.00x8.00x8.00, Galvanized, Steel
- Captivated stainless steel cover screws thread into sealed wells
- Oil-resistant gasket and adhesive
- Seams continuously welded and ground smooth
- No holes or knockouts
- Grounding stud on inside back of box
PRODUCT ATTRIBUTES
- Height: 8 in / 203 mm
- Width: 8 in / 203 mm
- Depth: 8 in / 203 mm
- Protection Rating: NEMA Type 3; IP66
- Material: Mild Steel
- Finish: Galvanized
- Body Thickness: 14 ga / 1.9 mm
- Door Thickness: 12 ga / 2.66 mm
- Cover Screw Quantity: 4
- Weight: 8.48 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Use this enclosure as a wiring, junction, pull or terminal box in applications subject to windblown dust and/or rain.
BULLETIN NUMBER
A90GS
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
