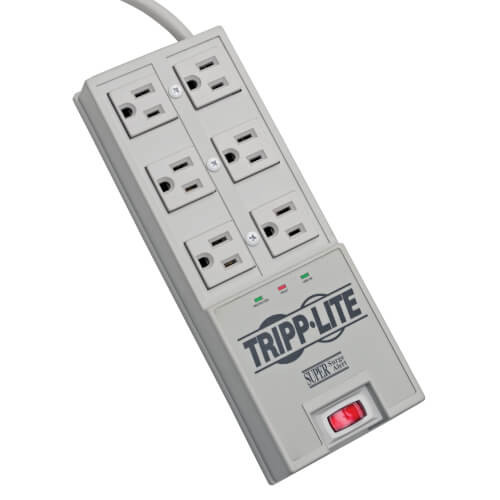

The TR-6FM Surge Suppressor from Tripp Lite has 6 outlets and a 6-ft. (1.83 m) cord with a space-saving right-angle plug. The unit has 3040 joules of surge energy absorption to handle the strongest surges. Built-in RJ11 jacks prevent surges from damaging your modem/fax/phone equipment. A 6-ft. (1.83 m) telephone cord is also included. Diagnostic LEDs alert the user to potential power problems. $50,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only). The Super Surge Alert+Tel comes with child safety covers and color-coded cord identifiers.
Features
6 outlets with child safety covers
6-ft. (1.83 m) cord with space-saving right-angle plug
Built-in RJ11 jacks prevent surges from damaging your modem/fax/phone equipment; 6-ft. (1.83 m) telephone cord included
Surge energy absorption: 3040 joules; 85,000 amps
15 amp circuit breaker
3 diagnostic LEDs indicate AC present, line fault & protection present
EMI/RFI noise filtering
Logical outlet spacing accommodates transformers without blocking remaining outlets
Keyhole supports for wall mounting
Recessed and lighted power switch
Color-coded cord identifiers
$50,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Package Includes
TR-6FM Surge Suppressor
6-ft. (1.83 m) Telephone cord
Child Safety Covers
Color-coded cord identifiers
Warranty information with instruction manual
Specifications
OVERVIEW
UPC Code
037332010612
INPUT
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
120V (110-125V)
Input Cord Gauge (AWG)
14
Voltage Compatibility (VAC)
120
Maximum Surge Amps
105000
Input Plug Type
NEMA 5-15P
Input Cord Details
SJT
Input Cord Length (ft.)
6
Right-Angle Plug
Yes
OUTPUT
Frequency Compatibility
50 / 60 Hz
Output (Watts)
1800
Output Receptacles
(6) 5-15R
Circuit Breaker (amps)
15
Transformer Accommodation
(2) Yes
USER INTERFACE, ALERTS & CONTROLS
Diagnostic LED(s)
Yes
Switches
Two position red illuminated on/off power switch
Diagnostic LED Details
PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating
3040
AC Suppression Response Time
< 1 ns
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC Suppression Surge Current Rating
78,500 amps
UL1449 Let Through Rating
400V - UL Verified
EMI / RFI Filtering
Yes
Immunity
Conforms to IEE 587 / ANSI C62.41
Automatic Shut-Off
Yes
DATALINE SURGE SUPPRESSION
Telephone/DSL Protection Details
1 line
Network (Ethernet) Protection
No
Telephone/DSL Protection
Yes
PHYSICAL
Material of Construction
Plastic
Power Cord Color
Light Gray
Housing Color
Light Gray
Mounting Holes or Slots
Yes
Slot or Hole Mount Measurement (Center to Center)
88.8 mm
Outlets Measurement (Center to Center)
Distance between horizontal outlets = 44.20mm; Distance between vertical outlets = 39mm
Receptacle Color
Light gray
Shipping Dimensions (hwd / in.)
2.00 x 6.00 x 12.50
Shipping Weight (lbs.)
2.30
Unit Dimensions (hwd / in.)
1.75 x 3.5 x 9.5
Unit Weight (lbs.)
1.65
STANDARDS & COMPLIANCE
Canada
Approved for Canada by ETL
Approvals
Exceeds IEEE 587 category A&B specifications
UL1449 3rd Edition (AC Suppression)
Tested to UL1449 3rd Edition by ETL
UL497A (Communications)
UL497A
FCC Part 68 (Communications)
FCC Part 68
Industry Canada (Communications)
Industry Canada
WARRANTY
Product Warranty Period (Worldwide)
Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
