Product Overview
Features
Heavy-Duty Extension Cable for Network Devices That Require a Heavy-Gauge Connection
This six-inch cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a computer, server or other device with a NEMA 5-20P plug to a wall outlet, PDU or UPS system with a NEMA L5-20R outlet. The short length helps reduce cable clutter.
Locking Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.
Package Includes

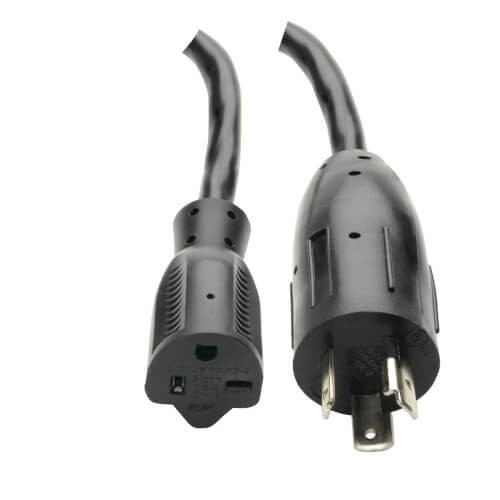

- P046-06N L5-20P to 5-20R Heavy-Duty Extension Cord, 6 in., Black
Specifications
OVERVIEW
| UPC Code | 037332158321 |
| Device Compatibility | Computer; Monitor/HDTV; Server; UPS; PDU |
| Country/Region | North America |
INPUT
| Maximum Input Amps | 20 |
| Voltage Compatibility (VAC) | 125 |
PHYSICAL
| Plug Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | FT2 |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 11mm |
| Number of Conductors | 3 |
| Wire Gauge (AWG) | 12 |
| Cable Length (ft.) | 0.5 |
| Shipping Dimensions (hwd / in.) | 10.00 x 7.10 x 0.50 |
| Shipping Weight (lbs.) | 0.40 |
ENVIRONMENTAL
| Operating Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Storage Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Operating Humidity Range | 20-80% RH |
| Storage Humidity Range | 20-80% RH |
CONNECTIONS
| Side A - Connector 1 | NEMA L5-20P |
| Side B - Connector 1 | NEMA 5-20R |
FEATURES & SPECIFICATIONS
| High Voltage | Yes |
| Locking Plug | No |
| Angled Plug | No |
STANDARDS & COMPLIANCE
| Certifications | UL/cUL |
| Approvals | UL/CSA |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
Features
Heavy-Duty Extension Cable for Network Devices That Require a Heavy-Gauge Connection
This six-inch cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a computer, server or other device with a NEMA 5-20P plug to a wall outlet, PDU or UPS system with a NEMA L5-20R outlet. The short length helps reduce cable clutter.
Locking Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.
Package Includes
- P046-06N L5-20P to 5-20R Heavy-Duty Extension Cord, 6 in., Black
Specifications
OVERVIEW
| UPC Code | 037332158321 |
| Device Compatibility | Computer; Monitor/HDTV; Server; UPS; PDU |
| Country/Region | North America |
INPUT
| Maximum Input Amps | 20 |
| Voltage Compatibility (VAC) | 125 |
PHYSICAL
| Plug Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | FT2 |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 11mm |
| Number of Conductors | 3 |
| Wire Gauge (AWG) | 12 |
| Cable Length (ft.) | 0.5 |
| Shipping Dimensions (hwd / in.) | 10.00 x 7.10 x 0.50 |
| Shipping Weight (lbs.) | 0.40 |
ENVIRONMENTAL
| Operating Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Storage Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Operating Humidity Range | 20-80% RH |
| Storage Humidity Range | 20-80% RH |
CONNECTIONS
| Side A - Connector 1 | NEMA L5-20P |
| Side B - Connector 1 | NEMA 5-20R |
FEATURES & SPECIFICATIONS
| High Voltage | Yes |
| Locking Plug | No |
| Angled Plug | No |
STANDARDS & COMPLIANCE
| Certifications | UL/cUL |
| Approvals | UL/CSA |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
