Tripp-Lite P040-012 12Ft Heavy Duty Power Cord

$45.99
SKU:
P040-012
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

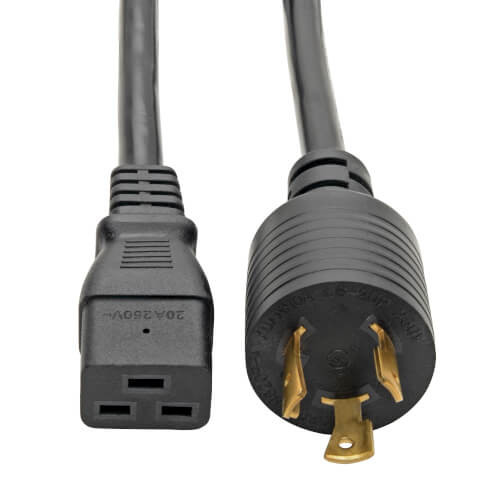

C19 to L6-20P Power Cable for Network Devices That Require a Heavy-Gauge Connection
This 12 AWG power cable is designed for servers, routers, network switches, blade server enclosures and other devices that require a heavy-gauge connection capable of managing high power levels. The fully molded C19 end connects to your device's C20 inlet, and the fully molded NEMA L6-20P plug connects to an AC power source up to 12-ft. (3.66 m) away. The 12-ft. (3.66 m) length allows you great flexibility in placing equipment with respect to the power outlet.
Locking Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking NEMA L6-20P connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking connector is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the heavy-duty power cable always stays connected.

Package Includes

  • P040-012 C19 to L6-20P Power Cord, 12-ft. (3.66 m), Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332180681
Device Compatibility Server; Router; Network Switch; UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 20
Voltage Compatibility (VAC) 250
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 11.2mm
Number of Conductors 3
Wire Gauge (AWG) 12
Cable Length (ft.) 12
Shipping Dimensions (hwd / in.) 7.10 x 7.90 x 0.10
Shipping Weight (lbs.) 2.20
ENVIRONMENTAL
Operating Temperature Range 23 F TO 140 F (-5 CTO 60 C)
Storage Temperature Range -4 F TO 176 F(-20 C TO 80C)
Operating Humidity Range 0% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 90% RH, Non-Condensing
CONNECTIONS
Side A - Connector 1 NEMA L6-20P
Side B - Connector 1 IEC-320-C19
FEATURES & SPECIFICATIONS
High Voltage Yes
Locking Plug Yes
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
