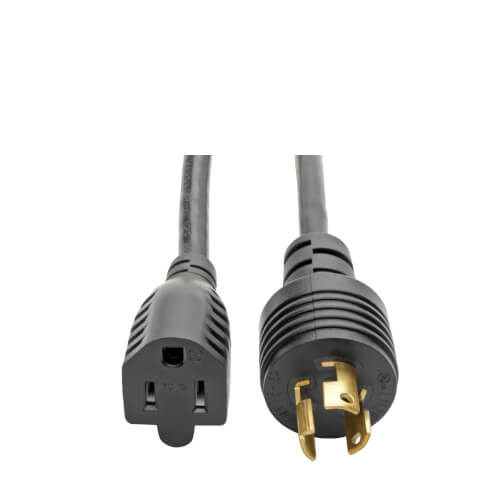

Tripp-Lite P025-001 Heavy-Duty Power Adapter Cord

$22.99
SKU:
P025-001
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

Heavy-Duty Extension Cable for Network Devices That Require a Heavy-Gauge Connection
This 5-15R to L5-15R adapter features 14 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It converts a standard NEMA 5-15P plug into a locking NEMA L5-15P plug, so it can connect to wall outlets, PDUs, surge protectors or UPS systems with NEMA L5-15R outlets. The 3-ft. (0.91 m) length helps reduce cable clutter and minimize the risk of tripping.
Locking L5-15R Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking NEMA L5-15R connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.

Package Includes

  • P025-001 5-15R to L5-15P Adapter Power Cord, 1-ft. (0.31 m), Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332185891
Device Compatibility Computer; Monitor/HDTV; Server; UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 15
Voltage Compatibility (VAC) 120
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 9.3mm
Number of Conductors 3
Wire Gauge (AWG) 14
Cable Length (ft.) 1
Shipping Dimensions (hwd / in.) 8.82 x 12.87 x 0.50
Shipping Weight (lbs.) 0.40
ENVIRONMENTAL
Operating Temperature Range 14 F TO 140 F (-10 C TO 60 C)
Storage Temperature Range 14 F TO 140 F (-10 C TO 60 C)
Operating Humidity Range 35% to 85% RH, Non-Condensing
Storage Humidity Range 35% to 85% RH, Non-Condensing
CONNECTIONS
Side A - Connector 1 NEMA L5-15P
Side B - Connector 1 NEMA 5-15R
FEATURES & SPECIFICATIONS
Locking Plug Yes
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
