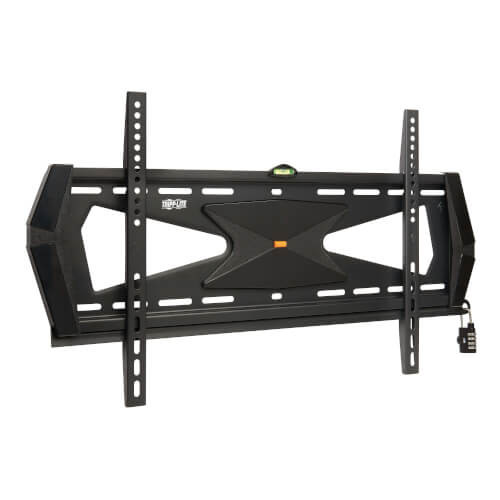

Tripp-Lite DWFSC3780MUL Display TV Monitor Security Wall Mount

$77.99
SKU:
DWFSC3780MUL
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

Security Wall Mount Hangs Your Flat-Panel or Curved-Screen TV or Monitor on the Wall
Ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 37 to 80 inches and up to 88 lbs (39.9 kgs). Mounting hardware is included.
Durable All-Metal Construction Provides Convenient Cable Access
The fixed TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount is function- and weight-tested to 200 lbs (90.7 kgs) in accordance with UL Standard 2442.
Designed to Keep Your Display Safe and Secure
This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.
Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This monitor wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 300 and 600 x 400.
5-Year Warranty
The DWFSC3780MUL is backed by a 5-year warranty, ensuring reliability and performance.

Package Includes

  • Wall plate
  • (2) Adapter brackets
  • Security bar
  • Wall plate level
  • (2) End caps
  • (4) End cap screws
  • (4) M5 x 14 screws
  • (4) M6 x 14 screws
  • (4) M6 x 30 screws
  • (4) M8 x 20 screws
  • (4) M8 x 30 screws
  • (4) Washers
  • (8) Small spacers
  • (8) Large spacers
  • (6) Anchor bolts
  • (6) Concrete anchors
  • (6) 20 mm washers
  • Combination lock
  • Owner’s manual
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332213730
Device Compatibility Monitor/HDTV
PHYSICAL
Material of Construction Steel
Color Black
VESA Pattern (mm)   300x200; 300x300; 300x400; 400x200; 400x300; 400x400; 500x200; 500x300; 500x400; 600x300; 600x400
Motion Fixed
Mounting Location Wall
Degrees of Motion Fixed
Minimum Screen Size (in.) 37
Maximum Screen Size (in.) 80
Maximum Weight Capacity (lbs.) 200
Number of Displays 1
Shipping Dimensions (hwd / in.) 29.30 x 9.10 x 2.00
Shipping Weight (lbs.) 7.10
Unit Dimensions (hwd / in.) 30.9 x 16.5 x .9
Unit Weight (lbs.) 5.20
FEATURES & SPECIFICATIONS
Cord Management No
Tools Necessary Yes
Security Lock Yes
STANDARDS & COMPLIANCE
Certifications UL 2442
Approvals RoHS3, REACH
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
