Description
Product Description:

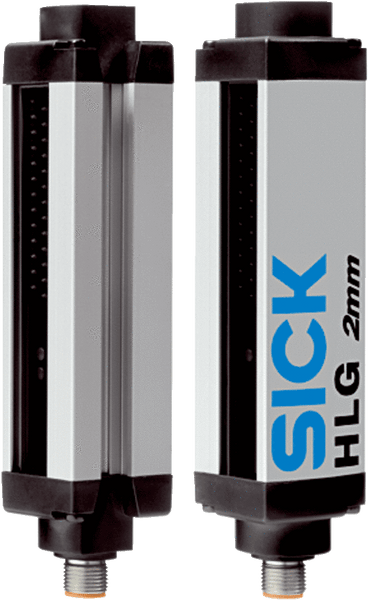

The high-resolution HLG light grid from SICK is the ideal solution for all applications where flat objects on a conveying system are to be reliably detected. This is possible due to a consistent resolution of 2 mm over the entire detection zone, a very low switching hysteresis and a very fast response time of only 3 ms. The HLG offers perfect detection solutions, e.g. in fast mail sorting systems, in packaging machines with high throughput, when counting small parts or detecting leading edges in logistics.
At a glance:
- 2 mm resolution
- Response time 3 ms
- Detection height 50 mm
- Cable synchronization
- PNP or NPN with Q or Qnot outputs (NO/NC)
- 1 x test, 1 x teach-in input
- M12 male connector, 8-pin
Your Benefits:
- Reliable object detection throughout the entire sensing range ensures consistent and reliable operation
- High availability thanks to its ability to detect very flat objects
- The quick response time of the HLG allows the customer to use higher conveyor speeds
- Cable synchronization makes for very high availability
- The highest measurement resolution for the detection of very small objects on the conveying belt enables error-free operation in edge detection applications or when counting small objects.
