Description

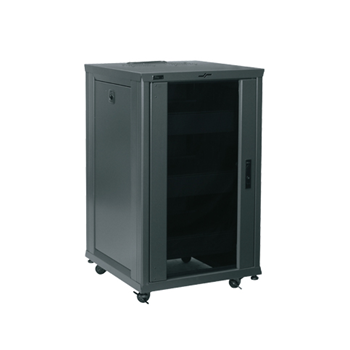

The Essex RCS Series Residential Configured Rack System offers exceptional quality and value at cost-effective prices for residential installers. It is completely assembled at the factory and ships with pre-installed accessories to save contractors time in the field while eliminating packaging waste.
- Fully welded steel construction
- Ships fully assembled to save time
- Locking removable side panels for easy integration
- Glass front door, locking rear access panel standard
- Includes front and rear adjustable rackrail
- Assembled with 5 shelves and 5 blank panels
- One set of Essex accessory brackets included to mount vertical power or lace strips
- Add a bracket to mount additional Essex accessories, ESX-ACC-BKT
GENERAL INFO
Finish: Metallic Grey
UL Standards Tested: UL1678
LISTING AGENCIES/THIRD PARTY CERTIFICATIONS
RoHS: Yes
Greenguard: Yes
UL Listing No: E173107
DIMENSIONS
Usable Depth: 20.1
Usable Height: 61.25
Panel Width: 19
Depth (US): 24
Height (US): 68.37
Width (US): 23.3
Rack Units: 35
TECHNICAL INFORMATION
Rackrail Type: 10-32
Static Load Capacity: 1000
Material: Steel
