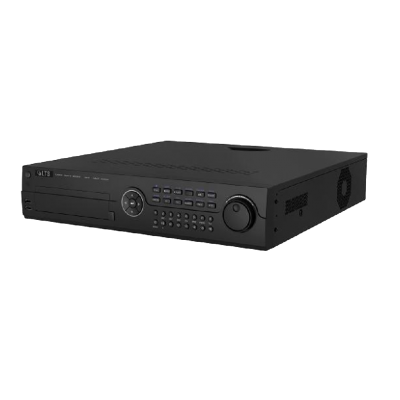

Product Overview

Professional and Reliable

New logical and visualized GUI design

Dual-OS design to ensure high reliability of system running

ANR technology to enhance the storage reliability when the network is disconnected

Configurable normal or hot spare working mode to constitute an N1 hot spare system

Video Input and Transmission

Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol)
which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing
bandwidth, when RAID is enabled, it will restrict TLS stream outgoing bandwidth to 64 Mbps)

Up to 64-ch cameras can be connected (up to 12 MP)

Connectable to the third-party network cameras

Compression and Recording

H.265 compression effectively reduces the storage space by up to 75%

Full channel recording at up to 12MP resolution

HD Video Output

HDMI1/VGA1 and HDMI2/VGA2 outputs provided

HDMI1 Video output at up to 4K (3840 × 2160) resolution

Storage and Playback

Up to 8 SATA interfaces and 1 eSATA interface for HDD connection

10TB capacity for each HDD

16-ch synchronous playback at up to 1080p resolution

Important files management

HDD health monitoring

Smart &POS Function

Supports multiple VCA (Video Content Analytics) events

Smart search for the selected area in the video; and smart playback to improve the playback
efficiency

Supports VCA search for fire/ship/temperature/temperature difference detection triggered video
files

POS information overlay on live view and playback

POS triggered recording and alarm

Network & Ethernet Access

LTS-Connect for easy network management

2 Gigabit Ethernet network interfaces
