Product Overview

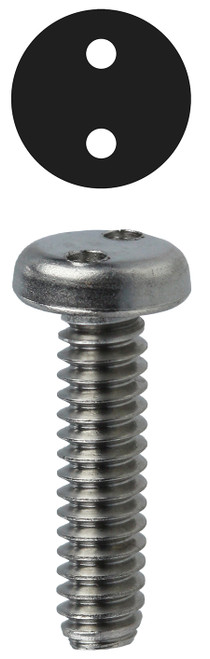

#10-32 x 1'' Spanner Pan Head TamperProof Machine Screw
Tamper Proof Screws are used in areas where prevention of public tampering or vandalism is important. They are distinguished by their unconventional drive styles, which are designed to minimize the possibility of removal. Tamper Proof Screws can be found in schools, public parks, correctional facilities, and many other locations where there is a high level of public activity. Special drivers are needed to install and remove these screws.
Specifications
Physical Characteristics
Type
Machine Screw
Style
Tamperproof
Drive Type
Spanner
Head Type
Pan
Size
#10-32 x 1''
Dia./Thread Size
#10-32
Head Diameter
0.357'' - 0.373''
Length (in)
1''
Head Height
0.099'' - 0.110''
Thread Pitch/Thread Per Inch
32
Driver Size
#2
Material
18-8 Stainless Steel
Packaging Details
Standard Qty
100
Sleeve Qty
500
Master Qty
4000
Price Per
100
Package Length
1.54
Package Width
2.92
Package Height
3.66
Package Weight
1.20
Net Weight
0.01
Performance Data
Special Features
Tamper Resistant
Applications
Prevention of Public Tampering or Vandalism
Certifications
RoHS Compliant
Yes
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
