Description
DESCRIPTION

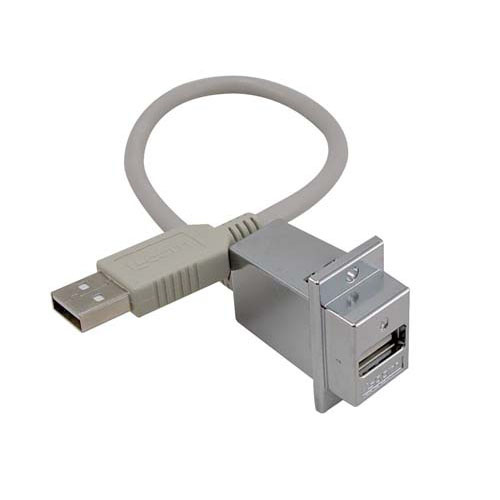

USB Surge Protector, Type A / Type A Panel Mount Style with Pigtail Cable - 72"
L-com's AL-ECF504-AA72 USB surge protector is a commercial quality device designed to protect a computer's sensitive USB ports from power surges and spikes from attached devices. To ensure USB 2.0 speeds, the device uses ultra-low capacitance diodes to protect the data lines. In addition, a protection device clamps the power lines to safe levels. This USB surge protector is ideal for protecting a PC from WiFi client adapters and surveillance cameras used with long USB extender cables. Other uses include protection from surges when using USB-RS422/485 converters with long cables.
The AL-ECF504-AA72 can be mounted in an enclosure, panel, wall plate, or used in-line as a standalone product. It features a fully shielded 72" pigtail cable.
Click on the Downloads tab for additional information and complete specifications.
FEATURES
- Power and data line protection
- Allows USB cables to be passed through panels or enclosures
- Shielded housing with shielded pigtail cable - 72"
- Type A Female Bulkhead to Type A Male connectors
- USB 1.0 and 2.0 compatible
APPLICATION
- Phone and DSL Modems
- Printers and computer peripheral devices
- WiFi Adapters
- Serial adapters
- Surveillance Cameras
