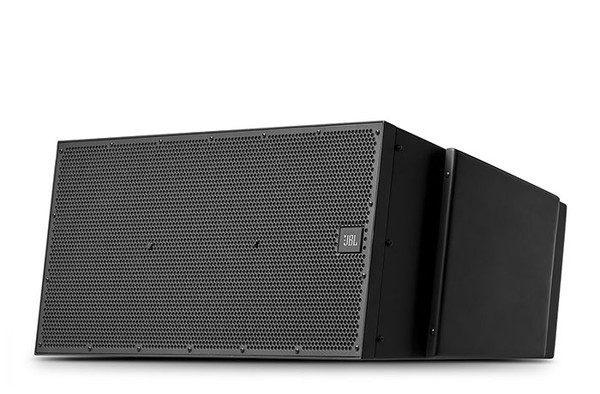

JBL VLA-C2100 Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF

JBL VLA-C2100 Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF

$7,223.44
SKU:
VLA-C2100
Shipping:
Calculated at Checkout
Type:
Installed Speakers
Speaker Application:
Professional
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description



Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive® LF

The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.

The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.



Features



  • Compact line array module optimized for permanent install applications
  • Advanced technology component transducers for low weight and high output
  • Outdoor IP55 rated enclosure for protection from dust and water
  • Comprehensive rigging points for creating a line array configuration
  • Fiberglass box construction and weatherized components
  • Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
  • 100° horizontal coverage pattern

Specifications


Frequency Response (-10dB) 86 Hz - 18 kHz
Frequency Response (±3 dB) 109 Hz – 15.3 kHz
Full Range 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp LF 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp HF 150 W Continuous Pink Noise (600 W peak), 2 hrs 50 W Continuous Pink Noise (200 W peak), 100 hrs
Full-Range 80 V Rms (2 hrs), 160 V peak
Maximum SPL (1m) 131 dB Cont. Ave (2 hrs), 137 dB Peak
Coverage Pattern (-6 dB) Horizontal: 100° (+5°/-15°, 1.5 kHz to 15 kHz) Vertical: Varies with array size and configuration
Amplifiers Crown DCi Family with DSP on-boardRecommended: Crown DCi 2 | 1250N Crown DCi 4 | 1250N/ND/DA Crown DCi 2 | 2400N Crown DCi 4 | 2400N
LF Driver 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
HF Driver 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C2100 to VLA-C2100: 2.4°, 3.8°, 6.0°, 9.5°, 15° using VLA-C2100 Bracket Plate (included with VLA-C2100)VLA-C2100 to VLA-C265 (either model on top/bottom): 1.9°, 3.0° using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°, 7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water)
Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers
Colors -GR: Gray (similar to Pantone 428C), -BK: Black
Dimensions (H x W x D) 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
Net Weight (each) 37.7 kg (83 lbs)
Shipping Weight (ea) 44.0 kg (97 lbs)
Included Accessories 2 x VLA-C2100 Bracket Plates
8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hexdrive) for attaching Bracket Plates
2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via
4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts
Optional Accessories VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket Kit
