Description

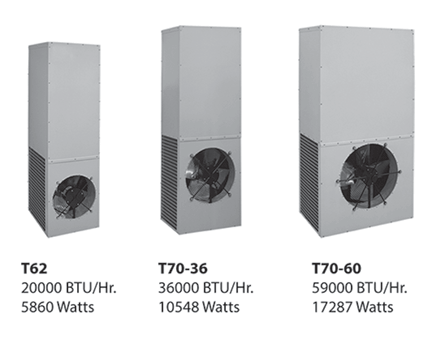

T-Series Large Capacity Outdoor with Heat T70, 36000BTU 230V, Lt Gray, Steel

Compact footprint to minimize real estate and maximize capacity
Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
R-407C refrigerant
Models for 230 and 460 VAC power input
Operating temperature range from -40 F/-40 C to 131 F/55 C
Reliable mechanical thermostat on enclosure side of the unit
Dual condenser-side air movers for performance redundancy
Painted galvanized sheet-metal cover for rugged factory and outdoor environments
Exterior and fully recessed mounting options on many models
Easy-mount flanges for simple installation
Every unit functionally tested before shipping
Standard Outdoor Air Conditioner models include telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
Mounting hardware, gaskets and user manual furnished with the unit

PRODUCT ATTRIBUTES

Height: 69.77 in / 1772 mm
Width: 22.8 in / 579 mm
Depth: 20.94 in / 532 mm
Material: Mild Steel
Nominal Voltage: 230 V
Number of Phases: 1
Nominal Capacity Watts: 12602 W
Nominal Capacity Btu/h: 43000 Btu/h
Protection Rating: NEMA Type 4; NEMA Type 3R
Operating Temperature: −40 to 131 °F / −40 to 55 °C
Max Current: 36 A
Remote Access Control: No
Finish: Powder Coated
Color: Light Gray
Color Code: RAL 7035
Thickness: 18 ga / 1.21 mm
Weight: 356 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

T-Series Large Capacity Air Conditioners keeps equipment cool even at peak heat loads. Their discreet design helps them to blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.

* ProAir A/C may be more appropriate. Refer to ProAir A/C Chapter. Consult the Factory for availability and catalog number.
