Description

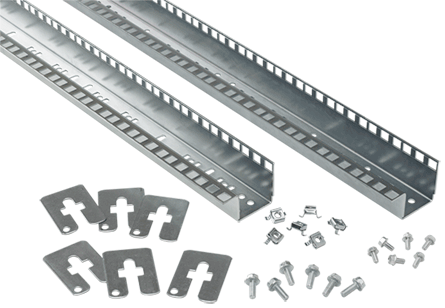

Rack Angle 24-inch Tapped Hole, fits 1600mm, Plated, Steel
- Furnished in pairs
- Tapped-Hole Rack Angles are constructed from 12 gauge conductive steel, while Square-Hole Rack Angles are 14 gauge conductive steel
- Tapped-Hole Rack Angles have 10-32 threaded holes; Square-Hole Rack Angles are designed to accept metric or English cage nuts.
- Rack Angles fit directly into 700-mm wide frames, or 800-mm wide frames using frame reducing brackets (sold separately)
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Rack Units: 33
- Hole Type: Tapped
- Fits Frame: 1600 mm mm
- Color: Unpainted
- Finish: Plated
- Thickness: 12 ga / 2.66 mm
- Weight: 13.78 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
24-in. Rack Angles are available in both square-hole and tapped-hole designs. Tapped Rack Angles have 10-32 tapped holes. Square-Hole Rack Angles are designed to accept metric or English cage nuts. 24-in. Rack Angles fit directly into 700-mm wide frames or 800-mm wide frames using frame reducing brackets.
Vertical holes spaced in 1.75-in. (44.5-mm) increments.
BULLETIN NUMBER
P20
