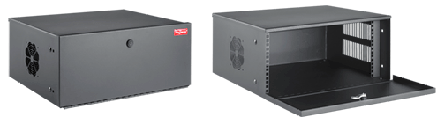

Hoffman DVR6U Type 1 Security DVR and Rack-Mount Equipment Cabinet

APPLICATION:

These cabinets provide physical protection and access control to DVR, 19-in. equipment or other equipment. Mount the cabinet vertically or horizontally on any surface.

FEATURES:

• Houses 19-in. or shelf-mount equipment
• Top cover has tool-less removal, is captivated by door and secured by keylock, providing easy access and installation
• Solid top cover protects equipment from falling debris
• Two standard models are 4U and 6U high
• Radius corners give streamlined appearance and eliminate sharp edges
• Solid front door has 180-degree opening continuous hinge
• Quarter-turn keylock with two keys on door (code 333)
• Vented sides dissipate heat from equipment
• A fan-ready cutout is provided on left side
• 14 gauge steel rack angles are adjustable within the cabinet body
• Rack angle mounting square holes (.375 x .375 in.) with EIA universal hole spacing (1/4 x 5/8 x 5/8 x 1/4-in.)
• Knockouts on bottom and side for data and power cables
• Rubber feet provide secure placement and prevent scratches
• Fasteners and cage nuts included

SPECIFICATIONS:

• Doors and body made of 18 gauge steel; top cover is 16 gauge steel
• Welded steel construction
• One set of rack angles included per EIA standard
• Included installation instructions show optional accessories

FINISH:

• Pretreated steel coated with RAL 9005 black, light-textured, lowgloss polyester powder paint

ACCESSORIES:

• Rack- and Panel-Mount Power Distribution Unit (PDU)
• Replacement Keys
• Dual Thermostat
• VELCRO® Cable Wrap
