Description

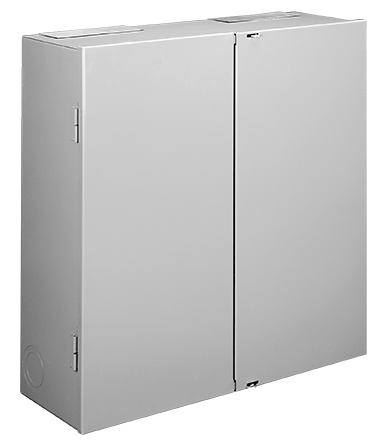

Metering Cabinet Type 1, 27x13x10, Gray, Steel
- Gland plates on top of two-door enclosure for meter connection
- Hinged door with pull latch and provision for padlocking
- Mounting holes in back
PRODUCT ATTRIBUTES
- Height: 27 in / 686 mm
- Width: 13 in / 330 mm
- Depth: 10 in / 254 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 16 ga / 1.52 mm
- Panel: 22.75 x 8.75 in / 578 x 222 mm
- Door Type: Single
- Weight: 40.2 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Metering Cabinet, Type 1 houses metering transformers and instrument assemblies in indoor applications. HQ models meet Hydro-Québec requirements. It includes one pre-punched accessory, one potential transformer and one current transformer panel, and a four-lug splitter block.
BULLETIN NUMBER
M1
