Product Overview

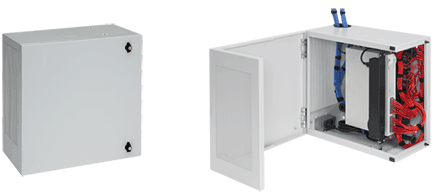

L-Box Type 1, 36.00x24.00x12.00, Lt Gray, Steel

Spring-loaded, self-retained hinge pins allow door removal
120-degree door opening for maximum eqiupment access
Quarter-turn latches with key lock
One set of fixed rack angles is included on 24- and 36-inch (610- and 914-mm) tall models and two on 48-inch (1219-mm) tall models
Rack angles on 36-inch (914-mm) models can be positioned either at the top or the bottom of the cabinet
36- and 48-inch (914- and 1219-mm) tall models have space for patch panel or shelf brackets
Knockouts for 4-inch (102-mm) fan on top and bottom of cabinet
Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of cabinet & two 3-inch cable entry knockouts on back
Multiple cable tie-down points on back of cabinet
Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy cabinet mounting

PRODUCT ATTRIBUTES

Height: 36 in / 914 mm
Width: 24 in / 610 mm
Depth: 12.34 in / 313 mm
Protection Rating: NEMA Type 1; IP30
Material: Mild Steel
Rack Units: 6
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 78 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

The low-profile, vertically-oriented L-Box wall-mount cabinet is extremely versatile and can be used in public settings to mount, store and protect network equipment, patch panels and connections. The hinged, L-shaped door provides full access on two sides to installed equipment while fixed rack angles accommodate varying equipment sizes.

BULLETIN NUMBER

DWS1

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
