Hoffman CWH4045LG Concept Hinged Window Kit

Hoffman CWH4045LG Concept Hinged Window Kit

$499.00
SKU:
CWH4045LG
Shipping:
Calculated at Checkout
Product Type:
Window Kits
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

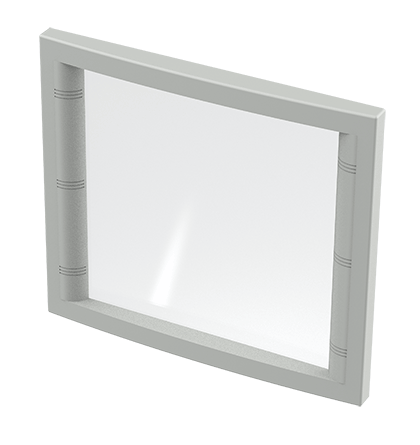

Concept Hinged Window Kit, fits 400x450mm, Lt. Gray, Aluminum

  • Aesthetic die-cast aluminum frame
  • 0.188-in. (5-mm) thick, clear polycarbonate window
  • Furnished window frame caps conceal mounting screws

PRODUCT ATTRIBUTES

  • Material: Aluminum
  • Window Size: 343 x 366 mm / 13.50 x 14.40 in
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness: 0.15 in / 4 mm
  • Weight: 5.9 lb

DRAWINGS AND DOCUMENT DOWNLOADS

Installation Manual / Instruction Sheet

Spec Sheet / Engineering Specification

ADDITIONAL PRODUCT DETAILS

Concept fixed window kit can be used as a viewing window on larger standard nVent HOFFMAN enclosure doors. Pre-assembled kit is secured to front opening of enclosure by mounting screws.

BULLETIN NUMBER

C2

INDUSTRY STANDARDS

UL 508A, 508, File Number E61997: Type 4 and Type 12 (Fixed Window)
UL 508A, 508, File Number E61997: Type 12 (Hinged Window)
Fixed Window Kits
NEMA Type 4 and 12
CSA File Number LR42186: Type 4 and Type 12
IEC 60529, IP66
Hinged Window Kits
NEMA Type 12
CSA File Number LR42186: Type 12
IEC 60529, IP66
