Description

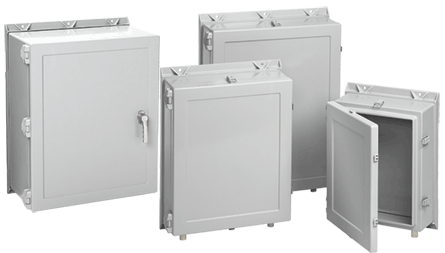

Hinge Cover with 3-Point Latch Type 4X, 36.25x30.25x12.00, Fiberglass
- Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
- Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
- Seams are sealed; no holes or knockouts
- Gasket assures water-tight and dust-tight seal
- Fiberglass material is easily punched, drilled, filed or sawed
- Data pocket is high-impact thermoplastic
- Copper-flashed steel collar studs for mounting optional panels and terminal block kits
PRODUCT ATTRIBUTES
- Height: 36.25 in / 921 mm
- Width: 30.25 in / 768 mm
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66
- Material: Fiberglass
- Finish: Smooth Matte
- Color: Gray
- Thickness: 0.13 in / 3.3 mm
- Panel: A36P30
- Conductive Panel: A36P30G
- Panel Size: 33.00 x 27.00 in / 838 x 686 mm
- Weight: 59 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature padlockable polyester latches, or HOFFMAN's exclusive PowerGlide Handle with 3-point latching, for ease of access with increased security.
Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories
BULLETIN NUMBER
A17W3
