Description

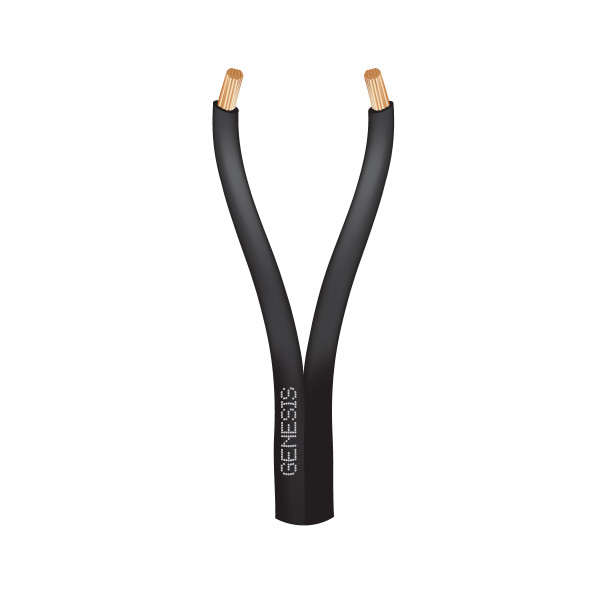

10214308 – 14 AWG STR LANDSCAPE LIGHTING, BLACK, 100 FT. REEL
This Genesis® cable features 2 stranded 14 AWG copper conductors and a Direct Burial rating. Choose this cable for dependable low-voltage landscape lighting wiring.
| Cable Rating | Outdoor |
|---|---|
| Cable Listing | ULECC, Direct Burial |
| Wire Gauge (AWG) | 14 |
| Solid or Stranded | Stranded |
| Number of Strands | 41 |
| Conductor Material | Bare Copper |
| Number of Conductors | 2 |
| Conductor Insulation Material | PVC |
| Shielding | No |
| Rip Cord | No |
| Nominal Outer Diameter | 0.165 x 0.365 in. |
| Rated Voltage (Max) | 150 Volts |
| DC Resistance (Max) | 2.62 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 27.9 pF / ft. |
| Impedance (Nominal) | 84 Ohms |
| Velocity of Propagation | 45% |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 100 ft |
| Length Per Unit | 100 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Package Length | 8.25 in |
| Package Width | 8.25 in |
| Package Height | 8 in |
| Product Weight | 4.4 lb |
