Description
FEATURES

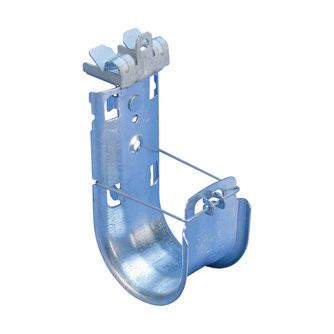

Low-profile configuration providing double J-Hook capacity
Requires only a hammer to install
Rotates 360 degrees to support various directional runs of cable
Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
Cost effective alternative to expensive cable tray
Complies with EN 50174-2
Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
PRODUCT ATTRIBUTES
Material: Steel;Spring Steel
Finish: Pregalvanized;nVent CADDY Armour
Diameter: 2"
Flange Thickness: 1/8" – 1/4"
Width: 6 1/2"
A: 5 1/8"
Static Load: 100 lb
ADDITIONAL PRODUCT DETAILS
Static load limit of each J-Hook is 60 lb (270 N).
Non-continuous supports may not exceed spacing of 5' (1.5 m) per TIA 569-C.9.7 and EN 50174-2
