Description

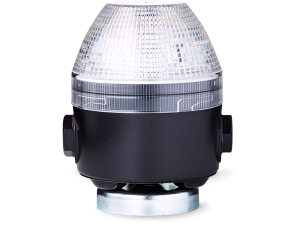

NFS LED strobe/double strobe beacon
- Ø 90 mm LED strobe/double-strobe beacon
- Wide voltage range due to switched-mode power supply technology
- Good signalling effect
- High degree of protection IP 65 & IP 67
- Modern LED technology – 3 high-power LEDs
- Strobe/double strobe can be selected via DIP switch
- For industrial and general applications
- 4 types of mounting
Technical data
| Housing | Ø 90 mm, Polycarbonate black (RAL 9005) |
| Lens | Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow |
| Type of mounting | horizontal, vertical, Tube mounting, Magnetic mounting or any |
| Cable entry | side: 2x M20 x 1.5 with blind plugs (optional cable gland 7–14 mm), bottom: Grommet 5–7 mm |
| Connection technology | Terminal 2,5 mm² |
| Leakage current | 0,003 A (PLC-suitable) |
| Beacon type | LED strobe beacon |
| Light source | 3 High Power LEDs |
| Strobe/flash frequency | 1,4 Hz |
| Duty cycle | 100 % |
| Service life | Light source: >50.000 h |
| Operating temperature | -30 °C / +60 °C |
| Degree of protection | IP65, IP67 & UL Type 4/4x/13 |
| Impact resistance | IK08 |
| Weight | 280 g (horizontal base) |
