Product Overview
DESCRIPTION

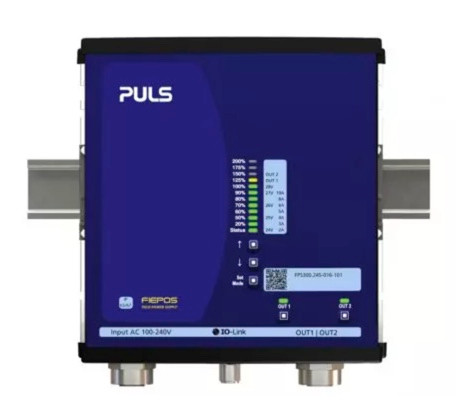

Field PS, 300W, 100-240VAC, 1PH, 24-28VDC, 12.5-10.7A (In 7/8" 3pin, Out 7/8" 5pin), IO-Link, IP65/67
FEATURES
- IP 65/67 Degree of protection
- 600Wpeak 5s
- 1AC 100-240V wide-range input
- 2 switchable outputs
- Outputs for actors and sensors separately protected
- 95.7% full load and excellent partial load efficiencies
- DIN rail mounting possible, option “D”
- Output connected to PE (PELV)
- Version without connection to PE on request
- Large output capacitors
- Not potted
- Negligible low input inrush current surge
- Full power up to +45°C
- IO-Link
- Input: 7/8" - 3pin | Output: 1x 7/8" - 5pin
RESOURCES
Other Information
PULS orders require a $400 combined order minimum. This item is fulfilled by a 3rd Party and is subject to availability and possible order minimums. PULS orders are Non-Cancelable/Non-Returnable.
DESCRIPTION
Field PS, 300W, 100-240VAC, 1PH, 24-28VDC, 12.5-10.7A (In 7/8" 3pin, Out 7/8" 5pin), IO-Link, IP65/67
FEATURES
- IP 65/67 Degree of protection
- 600Wpeak 5s
- 1AC 100-240V wide-range input
- 2 switchable outputs
- Outputs for actors and sensors separately protected
- 95.7% full load and excellent partial load efficiencies
- DIN rail mounting possible, option “D”
- Output connected to PE (PELV)
- Version without connection to PE on request
- Large output capacitors
- Not potted
- Negligible low input inrush current surge
- Full power up to +45°C
- IO-Link
- Input: 7/8" - 3pin | Output: 1x 7/8" - 5pin
