Product Overview
DESCRIPTION

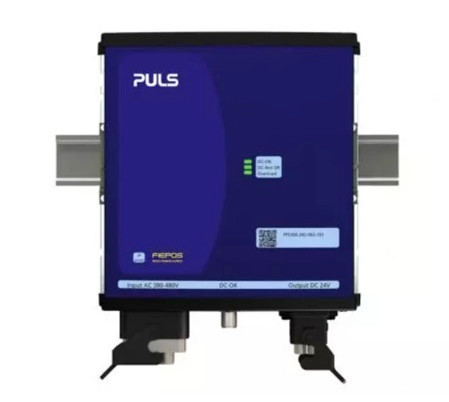

Field PS, 300W, 380-480VAC 3PH, 24VDC, 12.5A (In HAN Q4/2, Out HAN Q4/0), IP65/67
FEATURES
- IP65/67 degree of protection
- 450W continuously for 60s
- 600Wpeak 1s
- 3AC 380-480V wide-range input
- 95% full load and excellent partial load efficiencies
- DIN rail mounting possible, option “D”
- Output connected to PE (PELV)
- Version without connection to PE on request
- Large output capacitors
- Not potted
- Negligible low input inrush current surge
- Full power between -25°C and +55°C
- DC-OK relay contact
- Input HanQ4/2 / Output HanQ4/0
RESOURCES
Other Information
PULS orders require a $400 combined order minimum. This item is fulfilled by a 3rd Party and is subject to availability and possible order minimums. PULS orders are Non-Cancelable/Non-Returnable.
DESCRIPTION
Field PS, 300W, 380-480VAC 3PH, 24VDC, 12.5A (In HAN Q4/2, Out HAN Q4/0), IP65/67
FEATURES
- IP65/67 degree of protection
- 450W continuously for 60s
- 600Wpeak 1s
- 3AC 380-480V wide-range input
- 95% full load and excellent partial load efficiencies
- DIN rail mounting possible, option “D”
- Output connected to PE (PELV)
- Version without connection to PE on request
- Large output capacitors
- Not potted
- Negligible low input inrush current surge
- Full power between -25°C and +55°C
- DC-OK relay contact
- Input HanQ4/2 / Output HanQ4/0
RESOURCES
PULS orders require a $400 combined order minimum. This item is fulfilled by a 3rd Party and is subject to availability and possible order minimums. PULS orders are Non-Cancelable/Non-Returnable.
