Product Overview

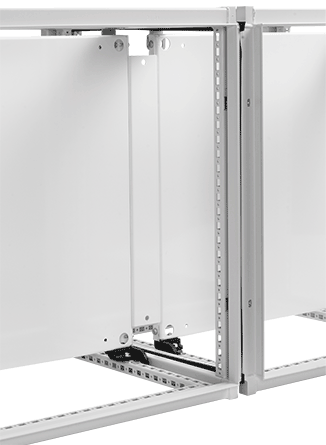

ProLine Joining Subpanel, fits 2000mm tall, Galvanized
- Holes for grounding and mounting hardware are provided.
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Fits Between Full Subpanels: PPF206, PPF207, PPF208, PPF2010, PPF2012, PPF2016
- Color: Unpainted
- Finish: Galvanized
- Thickness: 12 ga / 2.66 mm
- Weight: 10.8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Catalog
Data Sheet
Installation Manual / Instruction Sheet
Sell Sheet
ADDITIONAL PRODUCT DETAILS
Provides a continuous panel surface in multiple bay enclosures. The joining subpanel is inserted between full subpanels of equal height. It can be installed from front or rear.
BULLETIN NUMBER
P20
CAD GENERATION
Other Information
