Product Overview

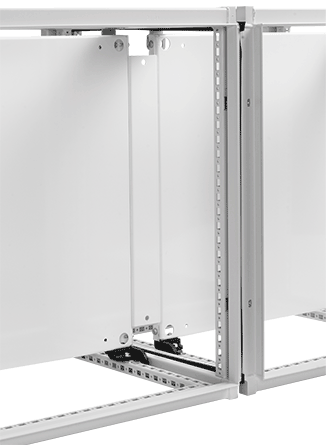

ProLine Joining Subpanel, fits 1600mm tall, Painted
- Holes for grounding and mounting hardware are provided.
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Fits Between Full Subpanels: PPF166, PPF167, PPF168, PPF1612
- Color: White
- Finish: Powder Coated
- Thickness: 12 ga / 2.66 mm
- Weight: 8.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Catalog
Data Sheet
Installation Manual / Instruction Sheet
Sell Sheet
ADDITIONAL PRODUCT DETAILS
Provides a continuous panel surface in multiple bay enclosures. The joining subpanel is inserted between full subpanels of equal height. It can be installed from front or rear.
BULLETIN NUMBER
P20
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
