Description

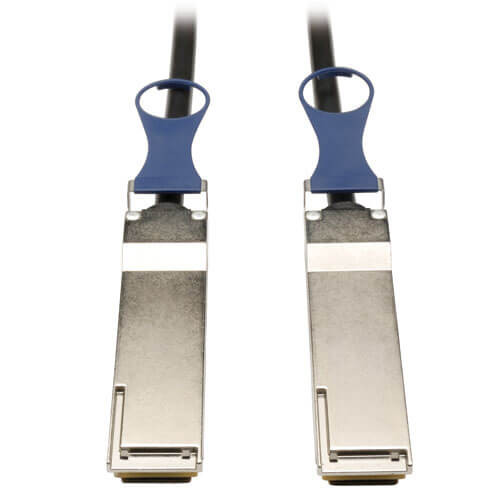

- 5 Meter QSFP+ tp QSFP+ 40Gb Passive DAC Copper Infiniband cable
- Compatible with Cisco QSFP-H40G-CU5M
- Meets or Exceeds strict 40-Gigabit Ethernet 40GBase-CR4 standards
- SDR, DDR, and QDR Compatible
- QSFP+ to QSFP+ 24AWG SFF-8436 compliant cable and connector
- Up to 10.3125 Gbps transfer rate per channel ( 40Gb aggregate )
- Multi-platform support for 40Gb, SAS, Fibre Channel, and SONET
- Zinc die-cast QSFP+ connectors with "Pull-to-Release" latching
- Fully compliant to latest QSFP+ MSA ( Multi Source Agreement )
- Lower port cost and reduced power budget vs Fiber Optics
- RoHS, SFF-8436, and IEEE 802.3ba Compliant
- BER better than 10¹²
- Networking Switch or other hardware with open QSFP+ Port(s)
- 5 Meter, QSFP+ to QSFP+ High Speed Passive Copper 40GB Cable
OVERVIEW
| UPC Code | 037332181572 |
| Product Type | Passive |
PHYSICAL
| Color | Black |
| Cable Jacket Material | PVC |
| Cable Outer Diameter (OD) | 8.5mm |
| Wire Gauge (AWG) | 26 |
| Cable Length (ft.) | 16.4 |
| Cable Length (in.) | 196.8 |
| Minimum Bend Radius | 45mm |
| Shipping Dimensions (hwd / in.) | 17.00 x 14.00 x 0.50 |
| Shipping Weight (lbs.) | 1.60 |
ENVIRONMENTAL
| Operating Temperature Range | 0℃ to +70℃ |
| Storage Temperature Range | -20℃ to +85℃ |
| Operating Humidity Range | 5% to 85% RH |
| Storage Humidity Range | 5% to 85% RH |
COMMUNICATIONS
| Network Compatibility | 40 Gbps |
| IEEE Standards Supported | 802.3BA |
CONNECTIONS
| Side A - Connector 1 | QSFP+ (MALE) |
| Side B - Connector 1 | QSFP+ (MALE) |
STANDARDS & COMPLIANCE
| Certifications | MSA SFF-8436 and RoHS compliant |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
