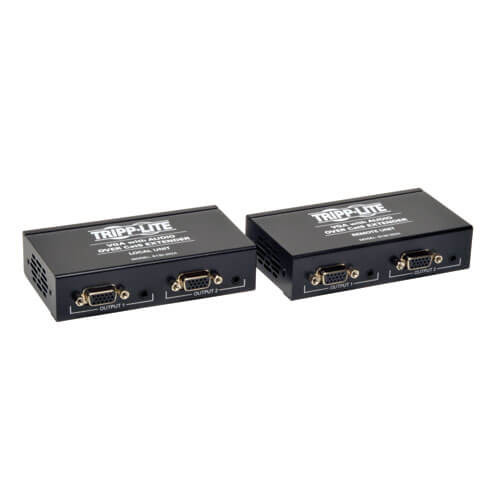

Tripp-Lite B130-202A VGA Video + Audio over Cat5 Cat6 Extender

$99.99
SKU:
B130-202A
Shipping:
Calculated at Checkout
Tripp-Lite B130-202A VGA Video + Audio over Cat5 Cat6 Extender

Product Overview

Features

  • Connect up to 4 monitors - 2 local and 2 remote
  • 3.5mm Stereo audio support and extension
  • Extends a 1440 x 900 @ 60Hz signal up to 165 ft. (50 m) from the source
  • Extends a 1024 x 768 @ 60Hz signal up to 500 ft. (150 m) from the source
  • EDID copy feature ensures optimal display compatibility
  • Built-in equalization control allows for adjustment of the video image
  • All operating systems are supported
  • Plug-and-play; no software or drivers are required
  • HDCP compliant

System Requirements

  • PC with VGA video output and 3.5mm Stereo output
  • Monitors with VGA input; speakers with 3.5mm Stereo input

Package Includes

  • Transmitter Unit
  • Receiver Unit
  • (2) External Power Supplies with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A, 4.5 ft.)
  • Screwdriver for equalization adjustment
  • Owner’s manual
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332182647
Product Type Extender Kit
Technology VGA/SVGA; Stereo Audio; Cat5/5e; Cat6
VIDEO
Max Supported Video Resolution 1440x900 @ 60Hz
Max 720P Range (ft) 165
Max 1280 x 720 (720p) Range (ft) 165
Transmitter Video Input VGA
Transmitter - Number of Video Outputs 2
Transmitter - Local Display Output VGA
Receiver/Transceiver Video Output VGA
Receiver - Number of Video Outputs 2
Range Extension using other Tripp Lite product 1000ft @ 1024 x 768 (60Hz) 500ft @ 1920 x 1440 (60Hz)
Recommended Cabling Solid Wire Cat6 Cables (Tripp Lite's N202-Series)
Other Tripp Lite product used to extend range B132-110A
HDR Support No
3D Video Supported No
Maximum Signal Range (ft) 500
Maximum Signal Range Details
500 ft @ 1024 x 768 (60Hz)
165 ft @ 1440 x 900 (60Hz)
AUDIO
Audio Input 3.5mm
Audio Output 3.5mm
Audio Specification Stereo Audio
POWER
Power Source Type AC Adapter
AC Plug Type NEMA 1-15P
Power Source Transmitter and Receiver (Included)
Power Over Cable (PoC) Support No
AC Adapter Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft.
External Power Supply Input Specs (V / Hz / A) 100-240V / 50-60Hz / 0.5A
External Power Supply Output Specs (V / A) 5V/2A
External Power Supply Cord Length (ft.) 4.5
External Power Supply Cord Length (m.) 1.38
DC Barrel Plug OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
USER INTERFACE, ALERTS & CONTROLS
LED Indicators TX & RX: Red (Power); EDID (Orange); RJ45: Green (Connection), Orange (Data Transmission)
PHYSICAL
Color Black
Included Mounting Accessories Wallmount
Number of Displays 4
Optional Mounting Accessory Notes Can DIN Mount using Tripp Lite Bracket  B110-DIN-01
Form Factor/Mounting Options Box; Wall-mount
Receiver Unit Dimensions (hwd / in.) 4.53 x 1.06 x 2.46
Receiver Unit Weight (lbs.) 0.5
Shipping Dimensions (hwd / in.) 2.20 x 6.20 x 8.40
Shipping Weight (lbs.) 1.70
Transmitter Unit Dimensions (hwd / in.) 4.53 x 1.06 x 2.46
Transmitter Unit Weight (lbs.) 0.5
Unit Packaging Type Box
Housing Metal
ENVIRONMENTAL
Operating Temperature Range 32 to 122 F (0 to 50 C)
Storage Temperature Range -4 to 158 (-20 to 70 C)
Relative Humidity 10% to 90% RH, Non-Condensing
COMMUNICATIONS
Max 1024 x 768 Range (ft) 500
Max 480P Range (ft) 500
Max 1440 x 900 Range (ft) 165
Max 480i Range (ft) 500
Max 640 x 480 Range (ft) 500
Max 800 x 600 Range (ft) 500
EDID Compatible   Yes
IR Remote Extension Support No
RS-232 Serial Extension Support No
Consumer Electronics Control (CEC) Supported No
USB Extension Support No
CONNECTIONS
Number of Ports 2
Side A - Connector 1 (3) HD15 (FEMALE)
Side A - Connector 2 RJ45 (FEMALE)
Side A - Connector 3 3.5MM (FEMALE)
Side B - Connector 1 (2) HD15 (FEMALE)
Side B - Connector 2 RJ45 (FEMALE)
Side B - Connector 3 3.5MM (FEMALE)
FEATURES & SPECIFICATIONS
Driver Required No
10/100 Ethernet Extension Support No
Built-In Equalizer Yes
STANDARDS & COMPLIANCE
Certifications Tested to FCC, RoHS, REACH
External Power Supply Certifications FCC; PSE; TUV; UL; cUL
WARRANTY
Product Warranty Period (Worldwide) 1-year limited warranty
