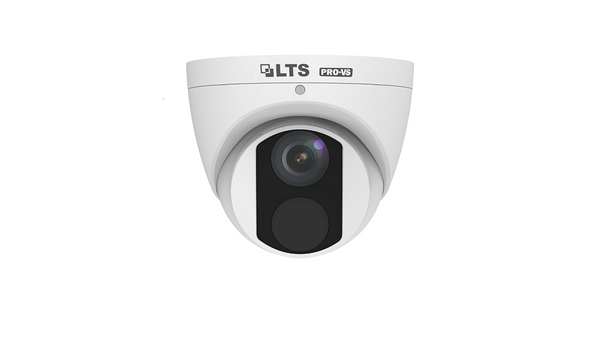

Product Overview
- Resolution: 8MP, 3840 x 2160@20fps
- Fixed Lens: 2.8mm
- Lux: 0.05 lux @F2.0
- Compression: Ultra 265/H.265/H.264/MJPEG
- IR: Smart IR LED up to 98ft
- Features: 120dB WDR, 2D/3D DNR, BLC, HLC, Digital Defog
- Axis: 3 Axis
- Rating: IP67, 2KV Surge Protection
- Power: DC 12V, PoE
| Camera | |||||||||
| Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F2.0 |
| |||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| |||
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 |
| ||||
| 4.0mm | 120 | 48 | 24 | 12 |
| ||||
| Angle of view(H) | 112.7° |
| |||||||
| Angle of View (V) | 60.1° |
| |||||||
| Angle of View (O) | 146.5° |
| |||||||
| Shutter | Auto/Manual, 1~1/100000 s |
| |||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~80° | Rotate:0°~360° |
| |||||
| Min. Illumination | Colour: 0.05 Lux (2.0, AGC ON) 0 Lux with IR |
| |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| S/N | >56dB | ||||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline Profile, Main Profile | ||||||||
| Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps Sub Stream:720P (1280*720): Max. 20 fps Third Stream:4CIF (704*576): Max. 20 fps | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 2 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||
| Dewarping | NA | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| Smart | |||||||||
| Behavior Detection | Human Body Detection | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS | ||||||||
| Compatible Integration | ONVIF (Profile S+ Profile T), API | ||||||||
| Client | LTS PRO-VS Station | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
| Interface | |||||||||
| Network | 10/100M Base-TX Ethernet | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||||
| General | |||||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | ||||||||
| Power consumption: Max 5W | |||||||||
| Dimensions (Ø x H) | Φ118×96mm (Φ4.6”×3.8”) | ||||||||
| Net Weight | 0.33kg (0.73lb) | ||||||||
| Material | Front cover metal Rear coverplastic Bracketplastic Bottom platemetal | ||||||||
| Working Environment | -30°C 60°C (-22°F 140°F), Humidity: ≤95% RH(non-condensing) | ||||||||
| Strorage Environment | -30°C 60°C (-22°F 140°F), Humidity: ≤95% RH(non-condensing) | ||||||||
| Surge Protection | 2KV | ||||||||
| Ingress Protection | IP67 | ||||||||
