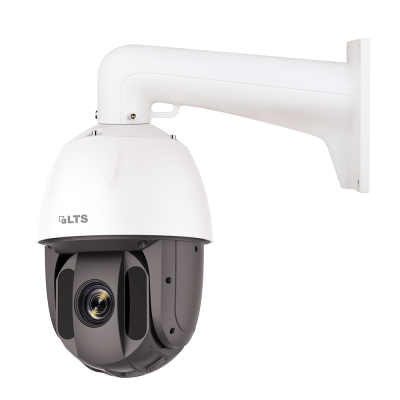

Product Overview
- 1/2.5" progressive scan CMOS
- Up to 2560 × 1440@30fps resolution
- Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
- 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- Up to 492ft(150 m) IR distance
- 24 VAC &aMP"; Hi-PoE
- Support H.265+/H.265 video compression
- Audio input/output
- Alarm input/output
- Wall Mount Bracket (LTB762N) Included
- High PoE Injector (60W) Sold Separately
| Camera Module | ||
| Image Sensor | 1/2.5" progressive scan CMOS | |
|
Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR | |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
| Gain | Auto/Manual | |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s | |
| Day &aMP"; Night | IR Cut Filter | |
| Digital Zoom | 16× | |
| Privacy Mask | 24 programmable privacy masks | |
| Focus Mode | Auto/Semi-automatic/Manual | |
| WDR | 120 dB WDR (not supported by full frame rate) | |
| Lens | ||
| Focal Length | 4.8 mm to 120 mm, 25× optical zoom | |
| Zoom Speed | Approx. 3.6 s (optical lens, wide-tele) | |
|
Field of View | Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele) | |
| Working Distance | 10 mm to 1500 mm (wide-tele) | |
| Aperture Range | F1.6 to F3.5 | |
| IR | ||
| IR Distance | 492ft(150 m) | |
| Smart IR | Support | |
| PTZ | ||
| Movement Range (Pan) | 360° endless | |
| Pan Speed | Configurable, from 0.1°/s to 120°/s Preset speed: 120°/s | |
| Movement Range (Tilt) | From -15° to 90° (auto-flip) | |
| Tilt Speed | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s | |
| Proportional Zoom | Support | |
| Presets | 300 | |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol | |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-off Memory | Support | |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| 3D Positioning | Support | |
| PTZ Position Display | Support | |
| Preset Freezing | Support | |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output | |
| Compression Standard | ||
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG | |
