Product Overview

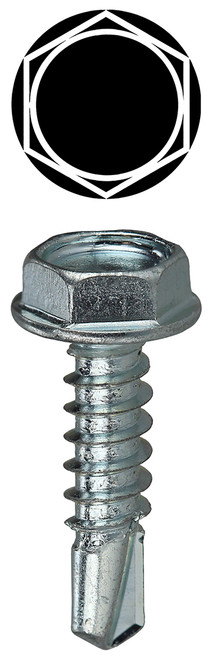

#8 x 1/2'' Hex Washer Head Self Drilling Screw (Tuff Pack)
Self-Drilling Screws are manufactured from cold-heading steel and feature a #2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.
Physical Characteristics
Type
Self Drilling Screw
Drive Type
Hex
Head Type
Hex Washer
Thread Type
BSD
Point Type
#2
Size
#8 x 1/2''
Dia./Thread Size
#8
Hex Size
1/4''
Head Diameter
0.348'' - 0.322''
Length (in)
1/2''
Head Height
0.110'' - 0.096''
Thread Pitch/Thread Per Inch
18
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
500
Master Qty
3000
Price Per
100
Package Length
3.50
Package Width
3.70
Package Height
3.50
Package Weight
1.86
Net Weight
0.00
Performance Data
Rockwell Hardness
HRC 32 - 40
Special Features
Drill, Taps and Fastens in One Operation
Applications
Metal to Metal
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
