Product Overview

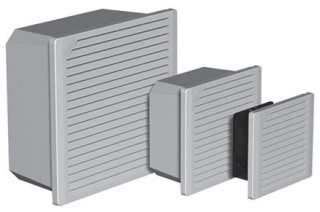

TFP6 Side-Mount Filter Fan Type 1, 230V 140CFM, Brushed, Stainless Steel 304

Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
Exhaust Package includes air filter, filter retainer with integral finger guard and grille
EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
Reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
24 VDC, 115 VAC and 230 VAC options available
Washable foam (Type 1) or disposable (Type 12) filter in fan
Dynamically-balanced fan impellers molded from polycarbonate material
4-inch fan is thermally protected and uses permanently-lubricated ball bearings
6- and 10-inch fans have ball bearing construction and split-capacitor motors that are thermally protected to avoid premature failure
Fans have lead wires for power connection with ends stripped 1/2 in. (12 mm)
All mounting hardware and installation instructions are furnished
Free airflow from 45 CFM (76 mm cu/hr.) to 215 CFM (365 mm cu/hr.)
Maximum operating temperature 158 F / 70 C
Engineered for 50,000 hours of continuous operation without lubrication or service (a monthly maintenance schedule is recommended to ensure optimal cooling performance)

PRODUCT ATTRIBUTES

Height: 7.8 in / 198 mm
Width: 8.87 in / 225 mm
Depth: 4.14 in / 105 mm
Airflow: 140 ft³/min / 238 m³/h
Nominal Voltage: 230 V
Voltage AC: 200 V
Max Current: 0.18 A
Operating Temperature: 158 °F max / 70 °C max
Material: Stainless Steel 304
Finish: Brushed
Color: Unpainted
Weight: 3.2 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

TFP Side-Mount Fans provide reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling. Engineered for 50,000 hours of continuous operation without lubrication or service.

BULLETIN NUMBER

D85

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
