Product Overview

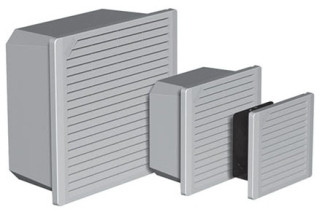

TFP6 Side-Mount Filter Fan Type 12, 230V 60CFM, Light Gray, Composite

Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
Exhaust Package includes air filter, filter retainer with integral finger guard and grille
EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
Reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
24 VDC, 115 VAC and 230 VAC options available
Washable foam (Type 1) or disposable (Type 12) filter in fan
Dynamically-balanced fan impellers molded from polycarbonate material
4-inch fan is thermally protected and uses permanently-lubricated ball bearings
6- and 10-inch fans have ball bearing construction and split-capacitor motors that are thermally protected to avoid premature failure
Fans have lead wires for power connection with ends stripped 1/2 in. (12 mm)
All mounting hardware and installation instructions are furnished
Free airflow from 45 CFM (76 mm cu/hr.) to 215 CFM (365 mm cu/hr.)
Maximum operating temperature 158 F / 70 C
Engineered for 50,000 hours of continuous operation without lubrication or service (a monthly maintenance schedule is recommended to ensure optimal cooling performance)

PRODUCT ATTRIBUTES

Height: 7.8 in / 198 mm
Width: 8.87 in / 225 mm
Depth: 4.14 in / 105 mm
Airflow: 60 ft³/min / 102 m³/h
Nominal Voltage: 230 V
Voltage AC: 200 V
Operating Temperature: 158 °F max / 70 °C max
Material: Composite
Finish: Smooth Matte
Color: Light Gray
Color Code: RAL 7035
Weight: 2.8 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

TFP Side-Mount Fans provide reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling. Engineered for 50,000 hours of continuous operation without lubrication or service.

BULLETIN NUMBER

D85
