Product Overview

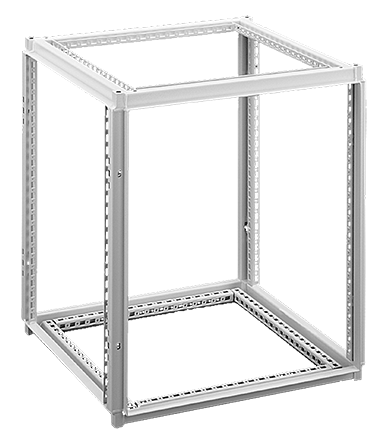

Single-Bay Frames, 700x600x600

12 gauge (2.5mm), roll-formed steel frame with welded steel corners
Open roll-formed profile design affords complete surface corrosion protection and assembly access
RAL 7035 textured light-gray polyester powder paint finish
Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
Integral frame channels support the full weight of the mounting subpanel (sold separately)
Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately

PRODUCT ATTRIBUTES

Material: Mild Steel
Max Subpanel Size: 585 x 530 mm / 23.03 x 20.87 in
Max Rack Mounting Space: 13U
Nominal Frame Size: 700 x 600 x 600 mm
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Thickness: 12 ga / 2.66 mm
Weight: 53 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

The ProLine frame is the foundational design element that protects the components inside this modular enclosure. The frame was designed to maintain a solid square structure - a solid foundation for the electrical enclosure.

BULLETIN NUMBER

P20

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
