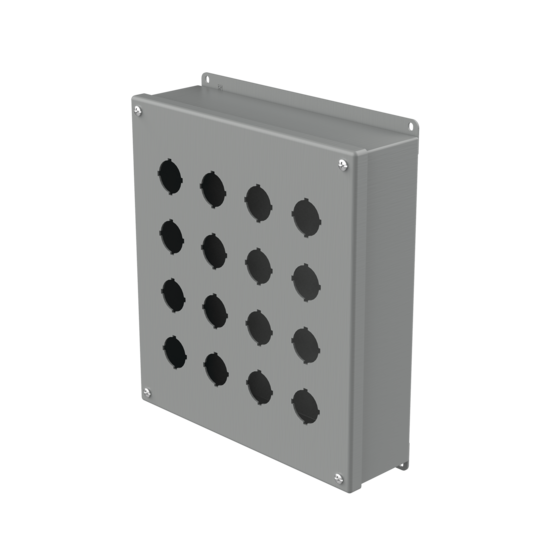

Hoffman E16PB Type 12 Pushbutton Enclosure

Hoffman E16PB Type 12 Pushbutton Enclosure

$289.00
SKU:
E16PB
Shipping:
Calculated at Checkout
Product Type:
Pushbutton Enclosures
Material:
Steel
Nema Rating:
Type 12
Height:
11.75
Width:
10.75
Depth:
3
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Pushbutton Enclosures Type 12, 12PBx30.5mm, Gray, Steel

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

PRODUCT ATTRIBUTES

  • Height: 11.75 in / 298 mm
  • Width: 8.5 in / 216 mm
  • Depth: 3 in / 76 mm
  • Protection Rating: NEMA Type 12; IP65
  • Material: Mild Steel
  • Hole Quantity: 12
  • Overall Dimensions: 12.75 x 8.72 in / 324 x 221 mm
  • Mounting: 12.25 x 7.62 in / 311 x 194 mm
  • Hole Size: 30.5 mm mm
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness: 14 ga / 1.9 mm
  • Weight: 7.3 lb

ADDITIONAL PRODUCT DETAILS

These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.

BULLETIN NUMBER

PB1
