Product Overview

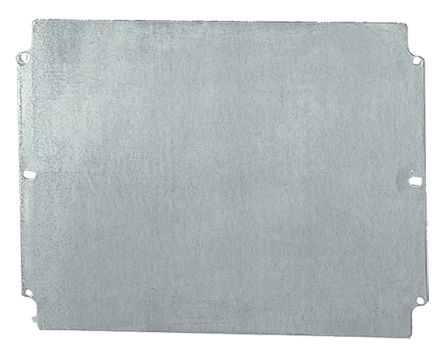

Mounting Plate for SS HMI Enclosure Type 4X, fits 500x550mm, Galv, Steel
- Mounting plate is 3-mm plated steel
- Mount using pins on the rear enclosure
PRODUCT ATTRIBUTES
- Height: 19.69 in / 500 mm / 16.93 in / 430 mm
- Width: 21.65 in / 550 mm / 18.5 mm / 470 mm
- Material: Mild Steel
- Color: Unpainted
- Finish: Galvanized
- Thickness: 0.12 in / 3 mm
- Weight: 10.46 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Mounting plate for Stainless Steel HMI Enclosure to mount equipment on the rear of the enclosure. Pins are provided on the rear enclosure for easy installation.
BULLETIN NUMBER
CCR6Y
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
