Product Overview

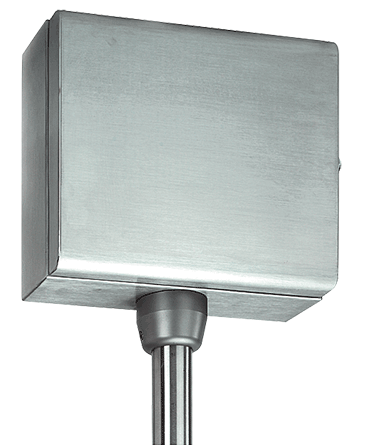

Stainless HMI Enclosure CCC60 Cutout Type 4X, 500x550x210mm, Brushed, SS304
- Stainless steel safety latch mounted at side, away from protected space
- Front door hinged on side
- Optional mounting plate to install in the rear of the enclosure
- Support arm system can be mounted from top or bottom
- Polyurethane foam gaskets
PRODUCT ATTRIBUTES
- Height: 19.69 in / 500 mm
- Width: 21.65 in / 550 mm
- Depth: 8.27 in / 210 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66
- Material: Stainless Steel 304
- Use With Pendant Arm System: Compact Series 2, Syspend 180-Max or Syspend 281-Max
- Door Clear Space: 420 x 440 mm / 16.54 x 17.32 in
- Mounting Plate: CCCP5055
- Color: Unpainted
- Finish: Brushed
- Thickness: 16 ga / 1.5 mm
- Weight: 32.6 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
A favorite with the food and pharmaceutical industries, these stainless steel, front-door control enclosures are ideal for applications that require corrosion resistance and the suspension of process and control equipment for easy cleaning and washdown. Pre-drilled hole is included for quick mounting to various support arm systems from top or bottom position. Option to install a mounting plate to mount equipment on the rear of the enclosure. Pins are provided on the rear enclosure for easy installation.
Use these enclosures with the CS480, Compact Series 2, Syspend 180-Max or Syspend 281-Max Support Arm Systems.
