Description

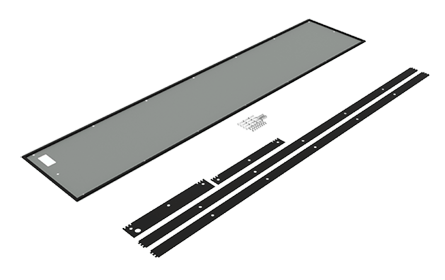

Barriers, 72.12x18.12, Steel
- Provides single solid barrier between bayed AMOD enclosures
- Mild Steel
- Painted Gray
- Self Adhesive Gasket
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Color: Gray
- Color Code: ANSI 61
- Finish: Powder Coated
- Thickness: 11 ga / 3.04 mm
- Weight: 36 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Used to provide a barrier between individual enclosures in an assembly of modular enclosures. The flat plate is gasketed on both sides and inserted between two modular enclosures. Bolts and instructions are included.
BULLETIN NUMBER
A34Y
