Product Overview

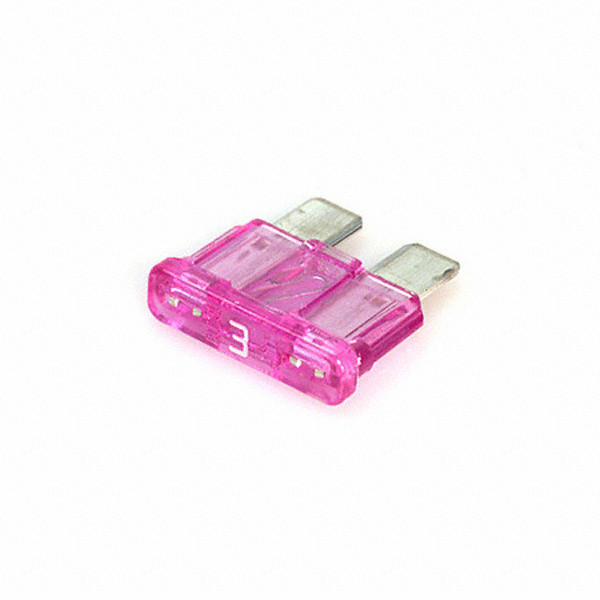

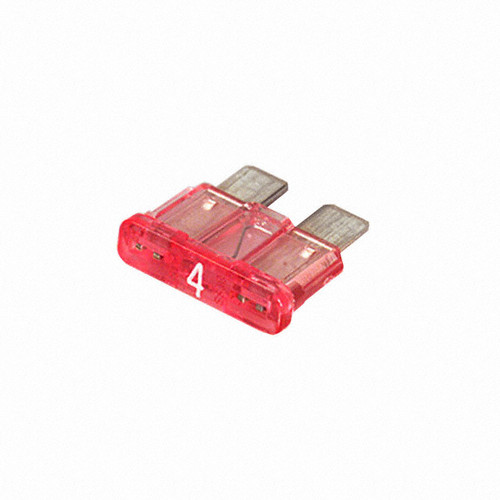

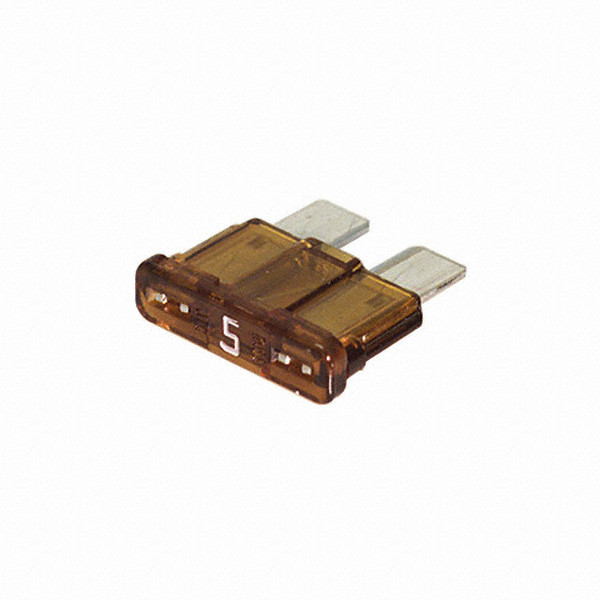

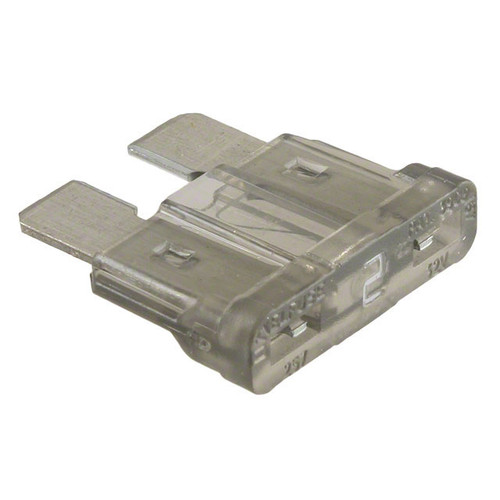

ATC blade fuses
Product description:
The Bussmann™ series ATC fuses are a range of UL® Recognized fast-acting blade fuses for automotive and low-voltage control circuits. All catalog numbers for these fuses feature the same form, fit and electrical performance characteristics regardless of their housing materials.
Features and benefits:
- Industry standard color coding for quick identification of amp rating.
- Tin-plated zinc terminals for corrosion resistance and enhanced conductivity.
- UL Recognized for use in low voltage control circuits.
- Wide -40°C to +100°C operating temperature range meets the needs of extreme environments.
- Lead free, halogen free and RoHS complaint.
- Test points on specific part/package numbers may speed up circuit troubleshooting.
Applications:
- Automotive and low-voltage control circuits.
Ratings:
- Volts: 32 V
- Amps: 1-40 A
- Interrupting Rating: 1 kA
Agency information:
- UL Recognized File E56412, Guide JFHR2, UL 248-1 (1-40 A).
- ISO 8820-3 / SAE® J1284 / JASO 612 (1-40A).
- SAE J1171 (Ignition Protection) see catalog number tables for specific orderable product.
- RoHS complaint
Materials:
- Tin-plated zinc terminals
- Tin-plated zinc element
- Housing (see catalog number tables for specific housing materials)
- Housing flammability rating — UL 94
Environmental:
- Operating Temperature Range -40°C to 100°C, 95% RH non-condensing.
- Storage Temperature Range -5°C to 35°C or lower, 85% RH non-condensing.
Please see Data Sheet for specific fuse details.
