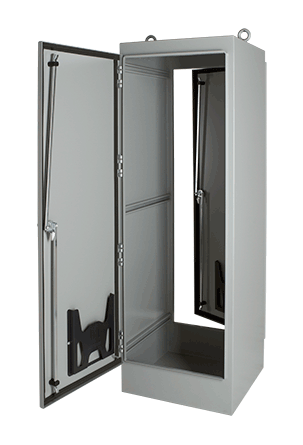

Hoffman A727224FSDADG Type 12 Free-Stand Two-Door Dual Access Enclosure

APPLICATION:

Available with front or front and rear access, these Category 12 enclosures have sturdy unibody construction and flexible internal mounting options.

SPECIFICATIONS:

• 12 gauge steel
• Seams continuously welded and ground smooth; no holes or knockouts
• Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
• Lifting eyes for easy handling
• 3-point latches operated by oil-tight key-locking handle
• Concealed, easy-to-remove hinges
• Data pockets are high-impact thermoplastic
• Internal mounting channels welded horizontally to sides at top, bottom and center
• Optional panels and rack mount angles can be mounted anywhere along channels
• Oil-resistant door gasket
• Bonding provision on door
• Provision for mounting fluorescent light To meet GR-63-CORE Zone 4 seismic standards, Free-Stand enclosures must include the following accessories (purchased separately):

For Seismic Free-Stand with Panel:

• Seismic Mounting Plate Kit
• Seismic Panel Mounting Kit
• Panel, Full-Length

For Seismic Free-Stand with Rack Angles:

• Seismic Mounting Plate Kit
• Rack Mounting Angles - L-Style (Category RP), Full

FINISH:

• Two finishes available: ANSI 61 gray, polyester powder paint outside and inside; or ANSI 61 gray outside and white, polyester powder paint inside.
• Optional panels available with a white or conductive finish.

ACCESSORIES:

• Panels
• Rack Mounting Angels L-Style
• PANELITE Enclosure Lights
• Floor Stand Kit
• SPECTRACOOL Indoor/Outdoor
• Seismic Panel Mounting Plate Kits
• Seismic Panel Mounting Kits
• HF Side-Mount Filter Fans
• Steel, Stainless Steel and Non-Metallic Window Kits
• Electric Heaters
• HOL-SEALERS Hole Seals
