Product Overview
Features
Connects Your Laptop or PC to a Wired Fiber Network without an Internet Card Installed

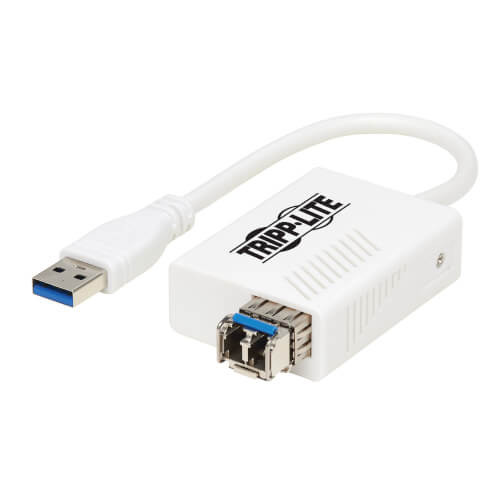

This USB to LC fiber optic Ethernet adapter allows you to instantly connect your computer, laptop, tablet or other USB-compatible device to a wired 10/100/1000 Mbps fiber optic network, even if your device has no NIC (Network Interface Controller) installed. The adapter offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. It transmits data up to 550 meters (1804 feet) from your fiber network using a wavelength of 1310nm.
Hot-Swappable for Installation Without Network Interruption
This USB 3.0 Multimode Fiber Optic Transceiver Ethernet adapter is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just connect the built-in USB cable to your device’s USB port (which also powers the adapter), and connect the LC duplex port to a high-speed network switch, router or hub using existing or newly run multimode fiber cable (such as Tripp Lite’s N820-Series, sold separately).
Delivers Full Gigabit Ethernet Performance with Audio and Video Streaming
The compact USB to Ethernet adapter supports full 1 Gbps network speeds and USB 3.0 speeds, allowing you to transfer data efficiently and stream audio and video. The direct fiber connection minimizes the risk of data leaks and electromagnetic interference (EMI). A blue LED indicates successful Ethernet connection and data transfer. The adapter works with Windows and Microsoft Server operating systems.
Typical Applications
- Install an LC duplex port on your Chromebook or PC for the purpose of connecting a multimode Gigabit Ethernet network cable
- Upload data from your notebook or download data from the Ethernet at true 10/100 Mbps speeds
- Replace a malfunctioning Ethernet card on your laptop or computer
Package Includes
- U336-MMF-1G-LC USB 3.0 Ethernet NIC Adapter
- Driver CD
- Quick Start Guide
System Requirements
- Computer or laptop with USB-A port (USB 3.0 is required to attain USB 3.0 speeds)
- Windows (through Win 10), Server (2012 or 2008)
- Network switch
Specifications
OVERVIEW
| UPC Code | 037332225993 |
| Technology | USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1) |
| Mode Type | Multimode |
INPUT
| Built-In Cable Length (in.) | 6.1 |
| Bus Powered | Yes |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Blue (Power/Data) |
PHYSICAL
| Color | White |
| Cable Jacket Rating | VW-1 |
| Material of Construction | ABS, PVC |
| Unit Dimensions (hwd / in.) | 0.71 x 2.2 x 1.61 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.12 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 131°F (0 to 55°C) |
| Storage Temperature Range | 32 to 140°F (0 to 60°C) |
| Relative Humidity | 5% to 90 % RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit) |
| Wavelength | 1310nm |
| Transmission Distance | 550m |
CONNECTIONS
| Side A - Connector 1 | USB 3.0 A (MALE) |
| Side B - Connector 1 | LC DUPLEX (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | Yes |
| Remote Wakeup Support | Yes |
| Optical Port | LC |
STANDARDS & COMPLIANCE
| Certifications | CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
