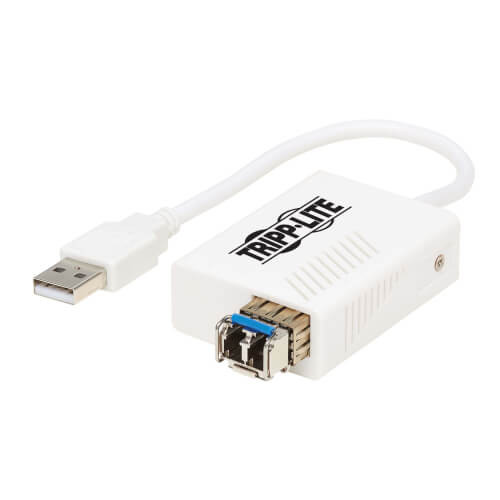

Tripp-Lite U236-MMF-LC USB Ethernet NIC Adapter

MSRP: $243.20
$139.99
(You save $103.21 )
SKU:
U236-MMF-LC
Shipping:
Calculated at Checkout

Product Overview

Features

Connects Your USB Device to a Wired Ethernet Network without an Internet Card Installed
This USB to Ethernet adapter allows you to instantly connect your computer, laptop, tablet or other USB-compatible device to a wired 10/100 Mbps fiber optic network, even if your device has no NIC (Network Interface Controller) installed. The adapter offers access to an Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. It transmits data up to 2 kilometers (1.2 miles) from your fiber network using a 1310 nm wavelength.
Hot-Swappable for Installation Without Network Interruption
This USB 2.0 Ethernet adapter is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just connect the built-in USB cable to your device’s USB port (which also powers the adapter), and wait for the installation process to finish (you may have to reboot your computer). Then, connect the LC duplex port using existing or newly run multimode fiber cable (such as Tripp Lite’s N820-Series, sold separately).
Delivers Full Ethernet Performance with Audio and Video Streaming
The compact USB to Ethernet adapter supports full 10/100 Mbps network speeds and USB 2.0 speeds, allowing you to transfer data efficiently and stream audio and video. The direct fiber connection minimizes the risk of data leaks and electromagnetic interference (EMI). A blue LED indicates successful Ethernet connection and data transfer. The adapter works with Windows operating systems and is backward compatible with USB 1.1 devices.

System Requirements

  • Computer or laptop with USB-A port (USB 2.0 or USB 3.0)
  • Windows (through Win 10) operating system

Package Includes

  • U236-MMF-LC USB 2.0 Ethernet NIC Adapter
  • Driver CD
  • Quick Start Guide
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332248473
Technology USB 2.0 (High Speed)
Mode Type Multimode
INPUT
Built-In Cable Length (in.) 6.1
Bus Powered   Yes
USER INTERFACE, ALERTS & CONTROLS
LED Indicators Blue (Power/Data)
PHYSICAL
Material of Construction ABS, PVC
Color White
Cable Jacket Rating VW-1
Unit Dimensions (hwd / in.) 0.71 x 2.2 x 1.61
Unit Packaging Type Box
Unit Weight (lbs.) 0.12
ENVIRONMENTAL
Operating Temperature Range 32 to 131°F (0 to 55°C)
Storage Temperature Range 32 to 140°F (0 to 60°C)
Relative Humidity 5% to 90 % RH, Non-Condensing
COMMUNICATIONS
Network Compatibility 100 Mbps (Fast Ethernet)
Wavelength 1310nm
Transmission Distance 2km
CONNECTIONS
Side A - Connector 1 USB A (MALE)
Side B - Connector 1 LC DUPLEX (FEMALE); RJ45 (FEMALE)
Connector Plating Nickel
FEATURES & SPECIFICATIONS
USB Specification USB 2.0 (up to 480 Mbps)
Driver Required Yes
Remote Wakeup Support Yes
Optical Port LC
STANDARDS & COMPLIANCE
Certifications Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) 3-year limited warranty
