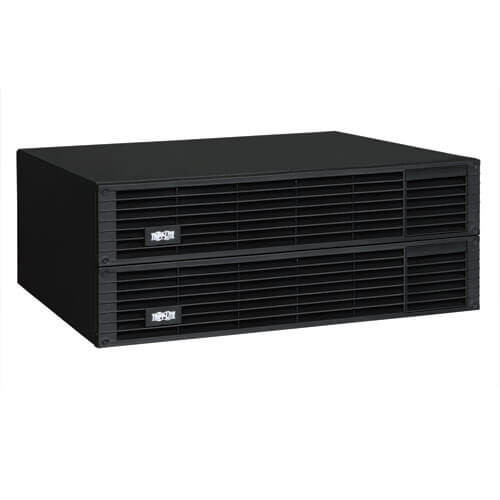

BP48V48RT4U - 4u external battery pack offers extended battery runtime when used in conjunction with expandable 48V Tripp Lite rackmount and tower UPS systems. 4u reduced-depth configuration with included 2 post mounting accessories is ideal for use with Tripp Lite Compact Rackmount models SMART2200CRMXL and SMART3000CRMXL. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS. Included mounting accessories support 4U balanced 2 point center-mounting rackmount installation in 2 post racks. Options for 4 post mounting available.
Compatible with these UPS Systems - SMART2200CRMXL, SMART3000CRMXL, and other Tripp Lite UPS systems that specify the use of this battery pack. (Note: BP48V48RT4U, SMART2200CRMXL and SMART3000CRMXL include hardware for 2-post rackmount installation; most other rackmount UPS systems and battery packs include hardware for 4-post rackmount installation.)
Features
Offers extended-run UPS operation when used in conjunction with compatible 48V DC Tripp Lite UPS systems
Reduced-depth configuration is ideal for use with Tripp Lite Compact Rackmount UPS systems SMART2200CRMXL and SMART3000CRMXL
Includes heavy gauge cabling with high current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS
Included mounting brackets support rackmount installation in 4 post racks using only 4 rack spaces (4U)
4POSTRAILKIT option supports 4 post rackmount installation
Package Includes
BP48V48RT4U external battery pack with attached DC cabling
2 post compatible mounting hardware
Owner's manual
Specifications
OVERVIEW
UPC Code
037332142474
INPUT
Input Phase
Single-Phase
OUTPUT
Overload Protection
180A DC output fuse system
BATTERY
Expandable Battery Runtime
Includes a second input/output connector to daisy-chain multiple BP48V48RT4U battery packs
Expandable Runtime
Yes
DC System Voltage (VDC)
48
UPS Connection
Attached 20.5 inch cabling with UPS specific DC connector (52.1 cm length, 4 gauge cable)
Typical Battery Lifespan
4-6 years typical (North America)
PHYSICAL
Material of Construction
Steel
External Battery Pack Form Factor
Rack
Installation Form Factors Supported with Included Accessories
2 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories
